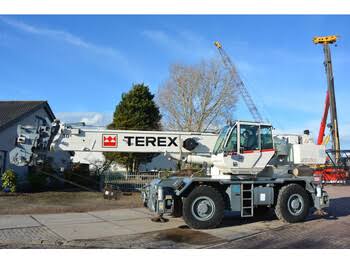

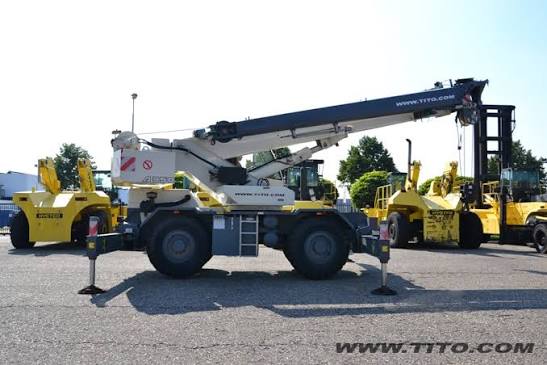

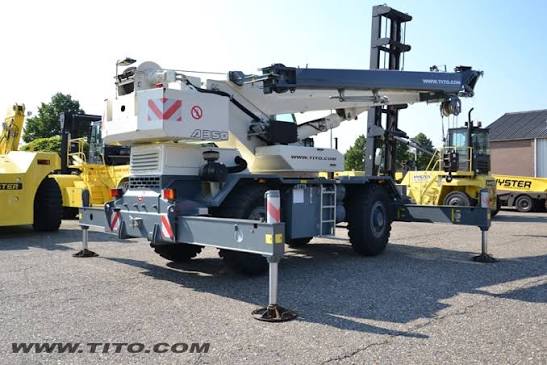

Terex
A350
- Operating Weight
- 562,179 lb
- Max Lift Capacity
- 66,139 lb
- Max Speed - Forward
- 22.4 mph
- Gross Power
- 143.5 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 562,179 lb |
|---|---|
| Fuel Capacity | 63.5 gal |
| Tire Size | 14R24 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | F4GE9684D*J601 |
|---|---|
| Displacement | 415 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 143.5 hp |
| Aspiration | Turbo supercharger |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 959 lb-ft |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 11 in |
| Transport Width | 101 in |
| Transport Height | 133 in |
| Transport Length | 418 in |
| Width w/ Outriggers Extended | 230 in |
| Upper Structure Tail Swing Radius | 132 in |
| Carrier/Base Length | 251 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | DANA series 20000 |
Boom
| Max Lift Capacity | 66,139 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,087 in |
| Min Height @ Max Raise Angle | 347 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 5 |
| Min Operating Radius | 119 in |
| Max Operating Radius | 985 in |
