Terex

AC 700

All Terrain Crane

Gross Power
643.7 hp
Max Speed - Forward
39.2 mph
Transport Width
119 in
All all terrain cranes

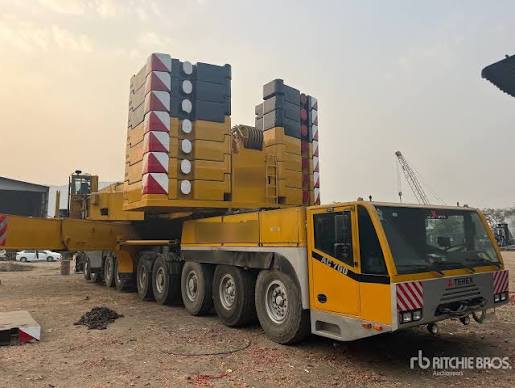

Terex AC 700 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight238,099 lb
Tire Size14.00R25
Carrier Fuel Capacity171.8 gal
Operating Voltage24 V
Number of Axels9
Upper Structure Fuel Capacity79.3 gal

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height158 in
Transport Length814 in
Width w/ Outriggers Extended487 in
Carrier Length734 in

Transmission

Transmission specifications
Max Speed - Forward39.2 mph
Transmission TypeZF-TC-Tronic automated

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib2,480 in
Min Height @ Max Raise Angle607 in
Max Elevating Angle83 °
Swing Speed1 rpm
Min Working Radius119 in
Max Working Radius2,126 in
Height5,724 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power643.7 hp
Max Torque2,065 lb-ft
Torque Measured @1,200 rpm
MakeTerex
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power275.0 hp
MakeTerex
Max Torque811 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
