Terex

AC 350

All Terrain Crane

Gross Power
603.5 hp
Max Speed - Forward
52.9 mph
Transport Width
119 in
All all terrain cranes

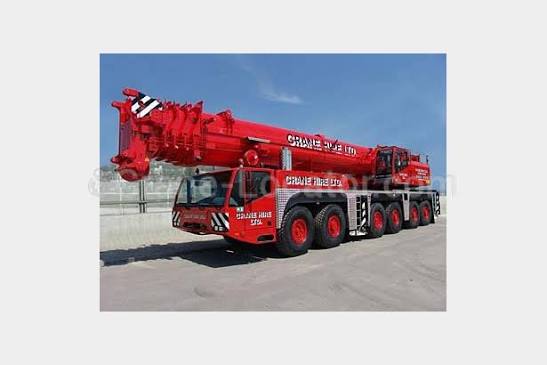

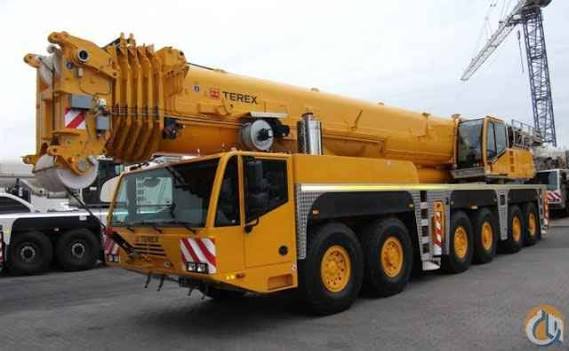

Terex AC 350 All Terrain Crane
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight158,733 lb
Tire Size14.00R25
Carrier Fuel Capacity174.4 gal
Operating Voltage24 V
Number of Axels6
Upper Structure Fuel Capacity174.4 gal

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width119 in
Transport Height158 in
Transport Length659 in
Width w/ Outriggers Extended335 in
Upper Structure Tail Swing Radius228 in
Carrier Length584 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeZF AS-Tronic automated
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib2,363 in
Min Height @ Max Raise Angle670 in
Max Elevating Angle82 °
Swing Speed1 rpm
Min Working Radius119 in
Max Working Radius2,048 in
Height4,968 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power603.5 hp
Max Torque1,991 lb-ft
Torque Measured @1,300 rpm
MakeTerex
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power275.0 hp
MakeTerex
Max Torque811 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
