Terex
BOMAG
CR 662 RM
Asphalt Paver
37 specifications
Terex
CR362
- Operating Weight w/ Screed
- 34,560 lb
- Paving Width - max
- 217 in
- Gross Power
- 165.0 hp
- Length w/ Screed
- 223 in
1 / 5

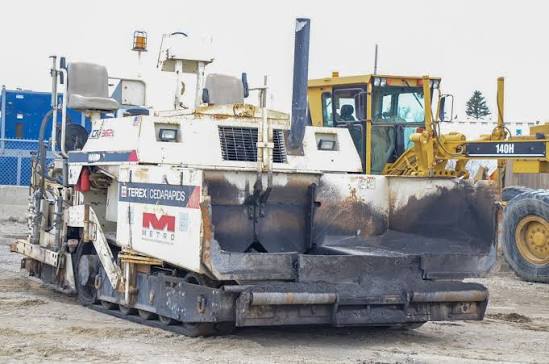

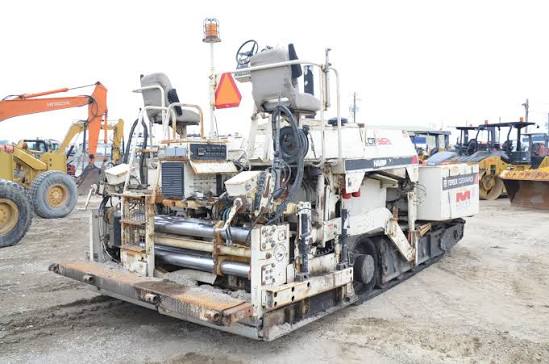

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight w/ Screed | 34,560 lb |
|---|---|
| Operating Weight w/o Screed | 27,950 lb |
| Fuel Capacity | 53.9 gal |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 6.1 gal |
| Alternator Supplied Amperage | 105 A |
Engine
| Engine Model | 6BTAA5.9 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 165.0 hp |
| Aspiration | turbocharged |
Dimensions
| Length of Track on Ground | 100 in |
|---|---|
| Transport Width | 102 in |
| Transport Height | 110 in |
| Track Width | 14 in |
| Length w/ Screed | 223 in |
| Width w/ Hopper Open | 121 in |
Hopper/Paver
| Paving Width - max | 217 in |
|---|---|
| Paving Speed - max | 2.3 mph |
| Hopper Capacity | 5 lb |
| Travel Speed - max | 8.8 mph |
| Auger Diameter | 14 in |
| Paving Thickness - max | 12 in |
