Terex

HML32

Excavator

Operating Weight
18,960 lb
Net Power
82.0 hp
All excavators

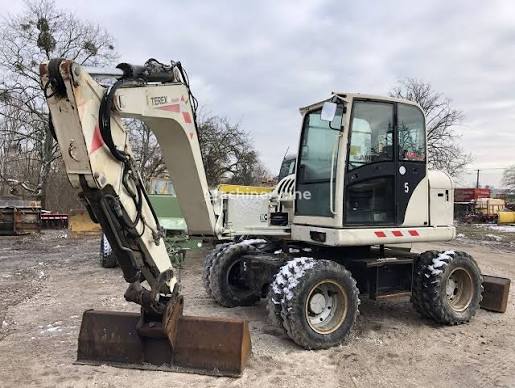

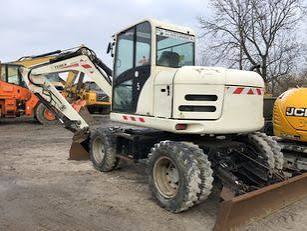

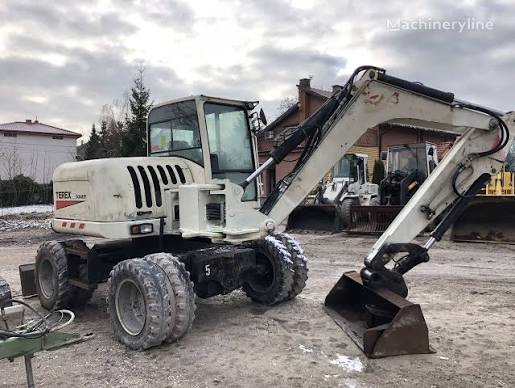

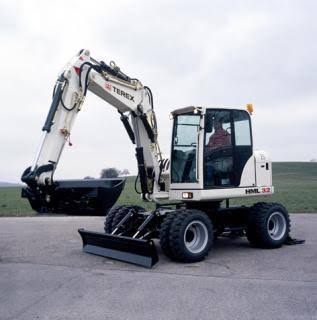

Terex HML32 Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,960 lb
Fuel Capacity50.2 gal
Hydraulic Pump Flow Capacity37.6 gal/min
Hydraulic System Fluid Capacity50.2 gal
Hydraulic System Relief Valve Pressure4,060 psi
Operating Voltage12 V
Alternator Supplied Amperage850 A
Hydraulic Pump Typeaxial piston
Tire Size8.25-20 14PR twin
Oscillating Axle Angle12 °
Max Steering Angle32 °

Engine

Engine specifications
Engine ModelBF4 M 2012
Displacement247 in³
Power Measured @2,000 rpm
Net Power82.0 hp
Number of Cylinders4
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Wheelbase88 in
Overall Width8 in

Transmission

Transmission specifications
Max Travel Speed12.4 mph
Transmission Typehydrostatic drive

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.60 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth161 in
Max Cutting Height296 in
Max Loading Height214 in
Shipping Length of Unit241 in
Shipping Height of Unit117 in
Max Vertical Wall Dig Depth139 in
