Terex

HR16

Mini Excavator

Operating Weight
7,981 lb
Max Digging Depth
134 in
Net Power
36.0 hp
All mini excavators

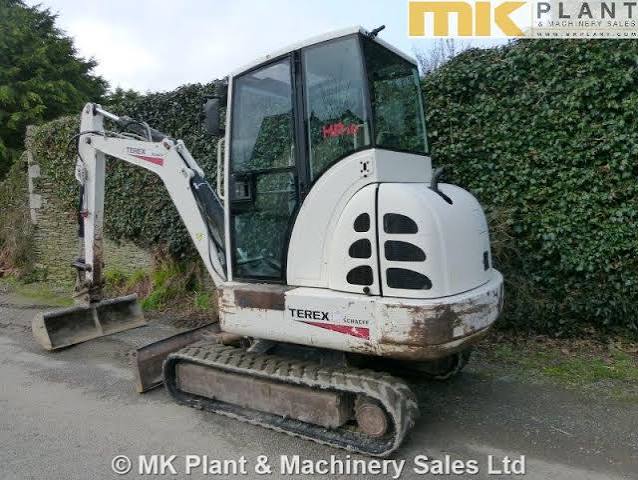

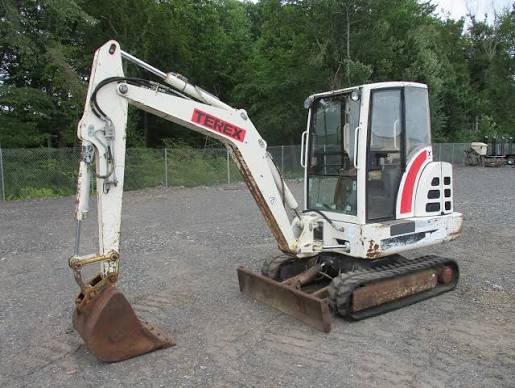

Terex HR16 Mini Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,981 lb
Fuel Capacity13.8 gal
Hydraulic Pump Flow Capacity32.5 gal/min
Hydraulic System Fluid Capacity24.1 gal
Hydraulic System Relief Valve Pressure3,625 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelS 4L-2-61 KL
Displacement107 in³
Net Power36.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Tail Swing Radius55 in
Width to Outside of Tracks60 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.7 mph
Shoe Size12 in
Drawbar Pull6,750 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Reach Along Ground219 in
Max Vertical Wall Digging Depth65 in
Max Loading Height127 in
Max Cutting Height187 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth143 in
Max Cutting Height192 in
Max Loading Height132 in
Max Vertical Wall Digging Depth69 in
Max Reach Along Ground226 in
