Terex

HR18

Mini Excavator

Operating Weight
10,913 lb
Max Digging Depth
146 in
Net Power
47.0 hp
All mini excavators

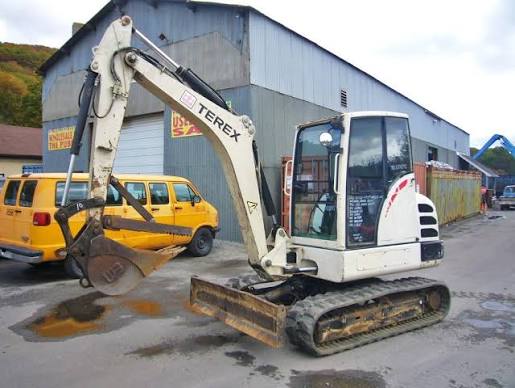

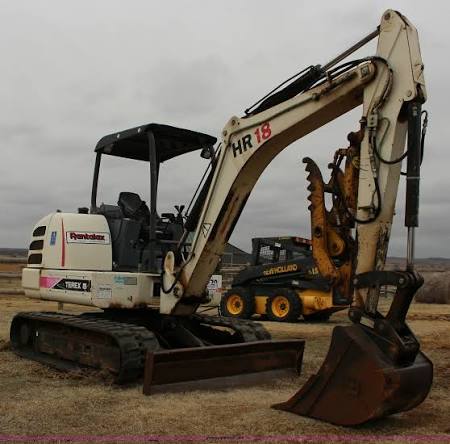

Terex HR18 Mini Excavator
1 / 5
Image 1 of 5
Image: strikeforcehobbies.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,913 lb
Fuel Capacity15.9 gal
Hydraulic Pump Flow Capacity41.9 gal/min
Hydraulic System Fluid Capacity27.0 gal
Hydraulic System Relief Valve Pressure3,552 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelS4 Q2-61 KL
Displacement153 in³
Net Power47.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Tail Swing Radius60 in
Width to Outside of Tracks76 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size16 in
Drawbar Pull9,450 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth146 in
Max Reach Along Ground236 in
Max Vertical Wall Digging Depth76 in
Max Loading Height143 in
Max Cutting Height205 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth154 in
Max Cutting Height209 in
Max Loading Height146 in
Max Vertical Wall Digging Depth83 in
Max Reach Along Ground245 in
