Terex

MT6300AC

Off-Highway Truck

Max Speed
39.8 mph
Gross Power
3,750.1 hp
All off-highway trucks

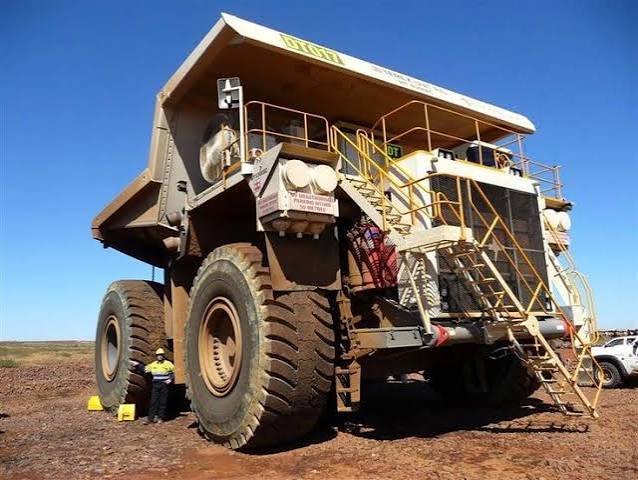

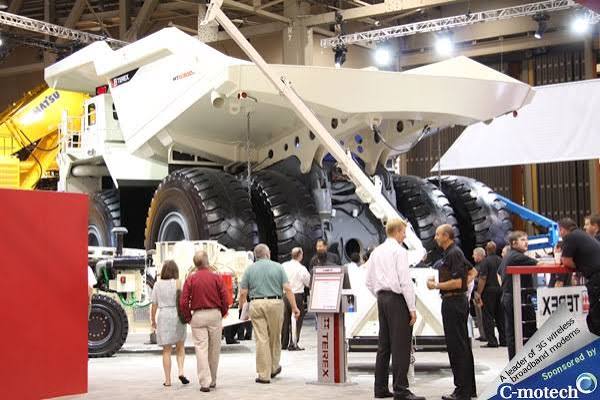

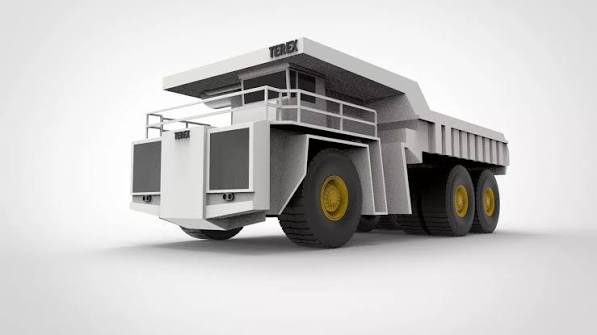

Terex MT6300AC Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Tire Size59/80R63

Engine

Engine specifications
Engine Model20V4000
Gross Power3,750.1 hp

Weights

Weights specifications
Empty Weight520,000 lb
Loaded Weight1,320,000 lb
Weight Distribution Front - loaded33.0 %
Weight Distribution Rear - loaded67.0 %
Weight Distribution Front - empty44.0 %
Weight Distribution Rear - empty56.0 %

Dimensions

Dimensions specifications
Wheelbase263 in
Overall Width376 in
Overall Height305 in
Dump Height529 in
Dump Ground Clearance66 in

Transmission

Transmission specifications
Max Speed39.8 mph

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank799,912.8 gal

Dump

Dump specifications
Rated Payload800,000 lb
