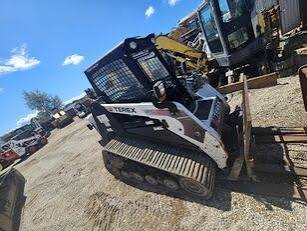

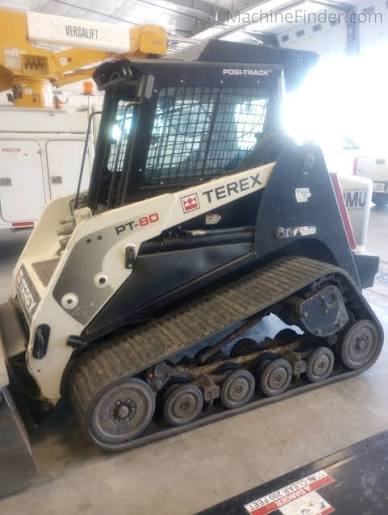

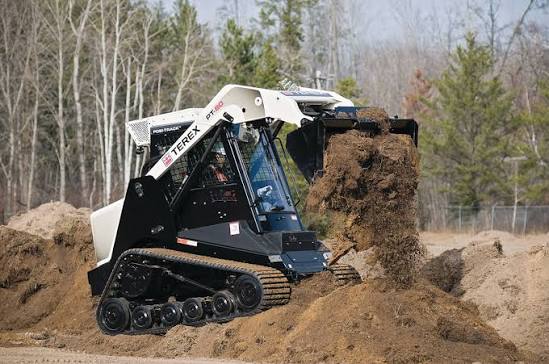

Terex
PT80
- Operating Weight
- 8,972 lb
- Max Speed - high range
- 12.5 mph
- Displacement
- 202 in³
- Gross Power
- 83.0 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 8,972 lb |
|---|---|
| Max Speed - high range | 12.5 mph |
| Max Speed - low range | 7.0 mph |
| Fuel Capacity | 18.0 gal |
| Hydraulic System Fluid Capacity | 21.0 gal |
| Cooling System Fluid Capacity | 3.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 A |
| Engine Oil Capacity | 2.3 gal |
Engine
| Engine Model | 804D-33T |
|---|---|
| Displacement | 202 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 83.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Peak Torque | 195 lb-ft |
Hydraulic System
| Pump Flow | 17.4 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 88 in |
| Width Over Tracks | 71 in |
| Length with Bucket | 144 in |
| Clearance at Max Lift and Dump | 100 in |
| Length - without Bucket | 113 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 72 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 24 |
| Ground Contact Area | 2,556 in³ |
Loader
| Tipping Angle | 6,200 ° |
|---|---|
| Operating Load | 3,100 lb |
