Terex

RT 100

Rough Terrain Crane

Gross Power
260.2 hp
All rough terrain cranes

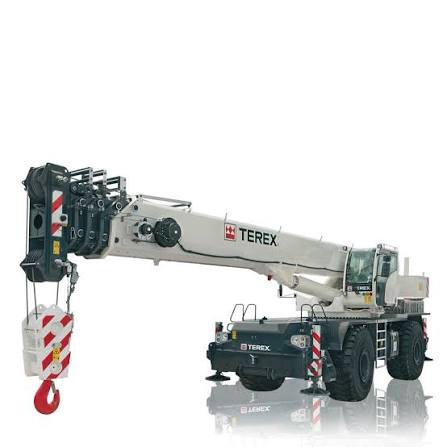

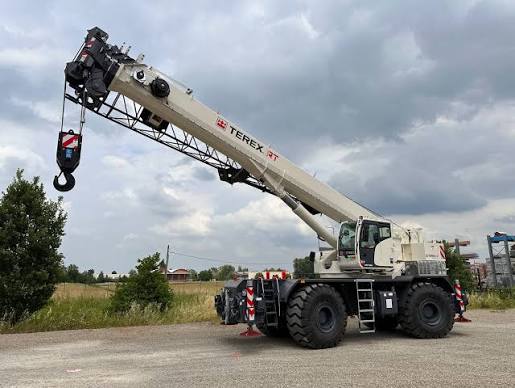

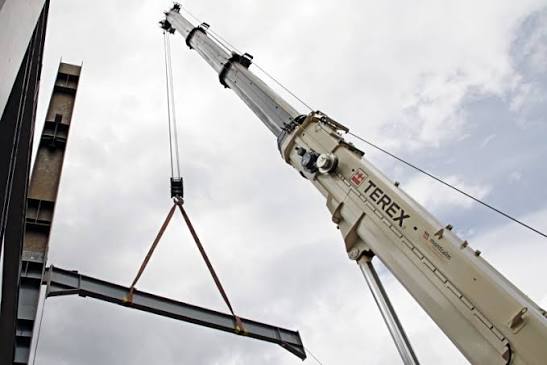

Terex RT 100 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: 3000toys.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Tire Size29.5 R25
Operating Voltage24 V

Engine

Engine specifications
Engine ModelQSB6.7
Power Measured @2,200 rpm
Gross Power260.2 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque728 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance26 in
Wheelbase175 in
Transport Width131 in
Transport Height156 in
Transport Length546 in
Width w/ Outriggers Extended316 in
Upper Structure Tail Swing Radius187 in
Carrier/Base Length353,308 in

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)90 (99) — Starting 2017 Model Year
Lift Height Ft. (m)70,1 (230) — Starting 2017 Model Year

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib2,087 in
Min Height @ Max Raise Angle457 in
Max Elevating Angle78 °
Number of Sections6
