Terex

RT 130

Rough Terrain Crane

Max Speed - Forward
12.7 mph
Gross Power
300.0 hp
All rough terrain cranes

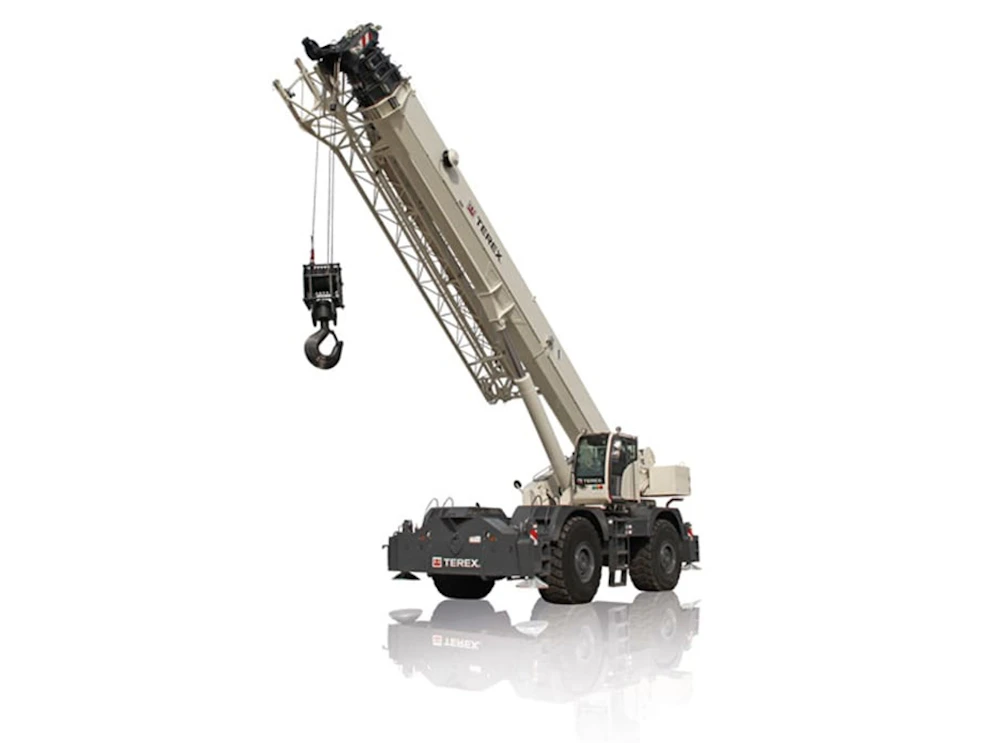

Terex RT 130 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity80.0 gal
Tire Size33.25x29-32 PR
Operating Voltage24 V
Hydraulic System Fluid Capacity304.0 gal

Engine

Engine specifications
Engine ModelQSC-300
Power Measured @2,200 rpm
Gross Power300.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Max Torque1,000 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Wheelbase180 in
Transport Width133 in
Transport Height156 in
Transport Length598 in
Width w/ Outriggers Extended312 in
Upper Structure Tail Swing Radius182 in
Carrier/Base Length350 in

Transmission

Transmission specifications
Max Speed - Forward12.7 mph
Number of Forward Gears6

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)118 (130) — Starting 2017 Model Year
Lift Height Ft. (m)66,4 (218) — Starting 2017 Model Year

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,860 in
Min Height @ Max Raise Angle498 in
Max Elevating Angle80 °
Number of Sections5
