Terex

RT 35

Rough Terrain Crane

Max Lift Capacity
77,162 lb
Gross Power
139.5 hp
All rough terrain cranes

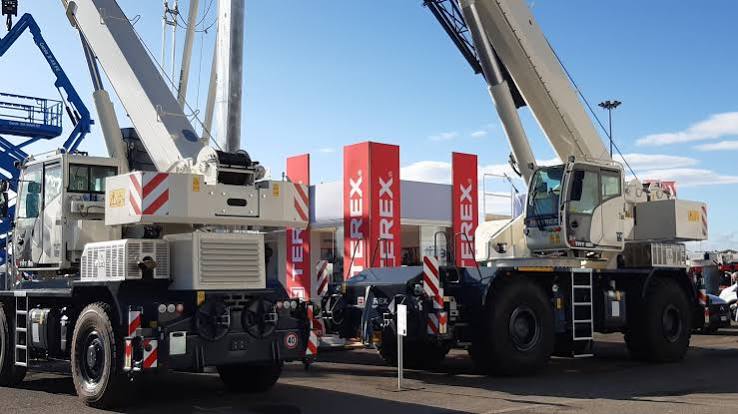

Terex RT 35 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity63.5 gal
Tire Size14.00 R 24
Hydraulic System Fluid Capacity103.1 gal

Engine

Engine specifications
Engine ModelQSB4.5
Power Measured @2,000 rpm
Gross Power139.5 hp
Torque Measured @1,800 rpm
Max Torque372 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance23 in
Wheelbase126 in
Transport Width101 in
Transport Height132 in
Transport Length428 in
Width w/ Outriggers Extended230 in
Upper Structure Tail Swing Radius133 in
Carrier/Base Length249,882 in

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)35 (38.5) — Starting 2017 Model Year
Lift Height Ft. (m)32.8 (108) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity77,162 lb
Max Height @ Max Raise Angle - no jib1,185 in
Min Height @ Max Raise Angle359 in
Max Elevating Angle78 °
Number of Sections4
