Terex

TB60

Aerial Lift

Max Platform Height
720 in
Overall Length
26 in
Overall Width
86 in
All aerial lifts

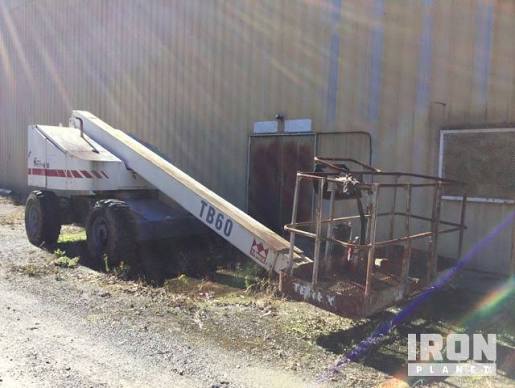

Terex TB60 Aerial Lift
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

28 data points

Engine

Engine specifications
Engine ModelLRG-425
Gross Power62.0 hp
Engine MakeFord
Fuel TypeGasoline

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase96 in
Overall Length26 in
Overall Width86 in
Tail Swing Radius43 in
Turning Radius203 in
Gradeability30.0 %
Stowed Height103 in
Shipping weight23,000 lb
Wheel track6 in

Performance

Performance specifications
Max Speed3.1 mph
Tire Size15 x 19.5 13 P.R
Hydraulic System Fluid Capacity52.0 gal
Fuel Capacity40.0 gal
Hydraulic System Relief Valve Pressure2,500 psi
Wheel load7,350 lb
Wheel load concentrated pressure170 psi

Platform

Platform specifications
Max Platform Height720 in
Max Platform Weight Capacity650 lb
Platform Inner Length72 in
Platform Inner Width36 in
Max Working Height792 in
Max Horizontal Reach618 in
Platform Rotation360 °
