Terex

TC16

Mini Excavator

Net Power
18.0 hp
All mini excavators

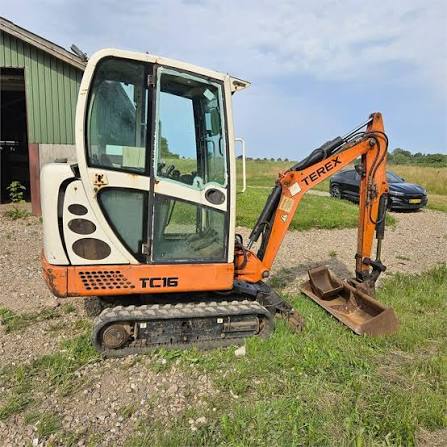

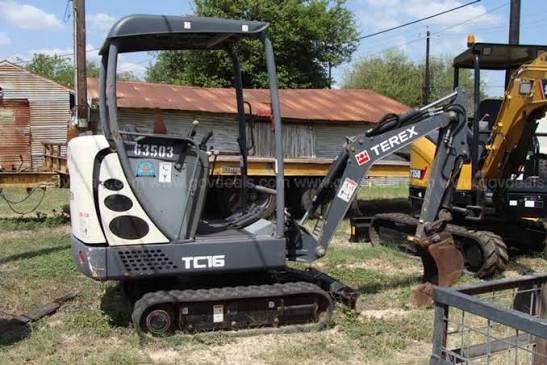

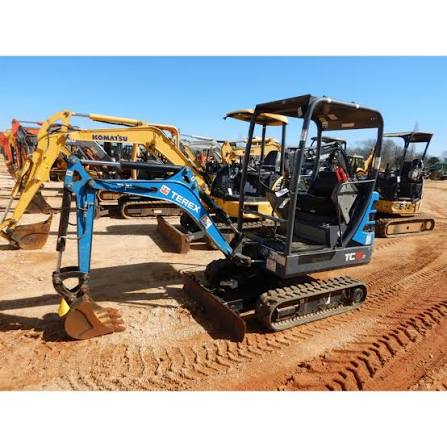

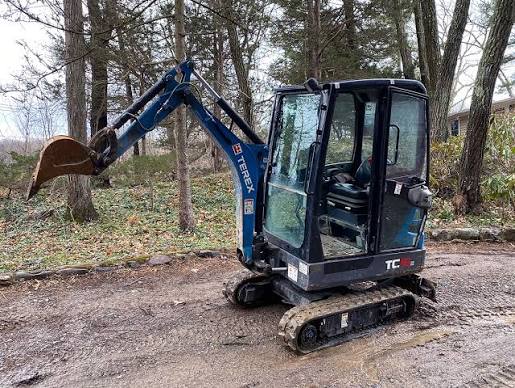

Terex TC16 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity8.0 gal
Hydraulic Pump Flow Capacity14.0 gal/min
Hydraulic System Fluid Capacity9.3 gal
Hydraulic System Relief Valve Pressure2,390 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelL3E-W 262 KL
Displacement58 in³
Power Measured @2,400 rpm
Net Power18.0 hp
Number of Cylinders3
Torque Measured @2,000 rpm
Max Torque440 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab95 in
Length of Track on Ground44 in
Tail Swing Radius44 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge31 in
Max Travel Speed1.7 mph
Shoe Size9 in
Drawbar Pull2,610 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Vertical Wall Digging Depth48 in
Max Loading Height95 in
Max Cutting Height138 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth88 in
Max Cutting Height134 in
Max Loading Height91 in
Max Vertical Wall Digging Depth44 in
