Terex

TC20

Mini Excavator

Net Power
18.0 hp
All mini excavators

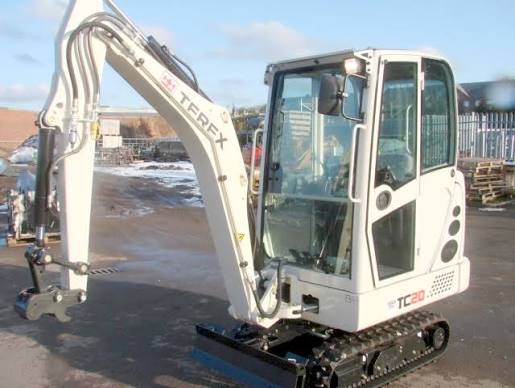

Terex TC20 Mini Excavator
1 / 5
Image 1 of 5
Image: fymasauctions.dk

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity8.0 gal
Hydraulic Pump Flow Capacity14.0 gal/min
Hydraulic System Fluid Capacity9.3 gal
Hydraulic System Relief Valve Pressure2,600 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelL3E-W 262 KL
Displacement58 in³
Power Measured @2,400 rpm
Net Power18.0 hp
Number of Cylinders3
Max Torque440 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab107 in
Length of Track on Ground44 in
Tail Swing Radius48 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge35 in
Max Travel Speed2.8 mph
Shoe Size9 in
Drawbar Pull3,375 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Vertical Wall Digging Depth39 in
Max Loading Height103 in
Max Cutting Height143 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth100 in
Max Cutting Height148 in
Max Loading Height108 in
Max Vertical Wall Digging Depth46 in
