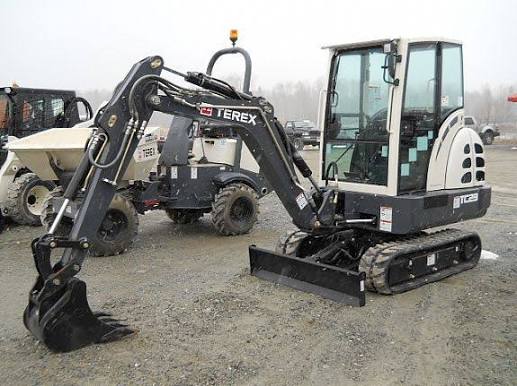

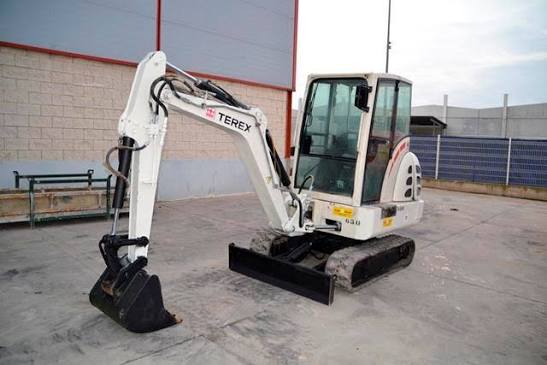

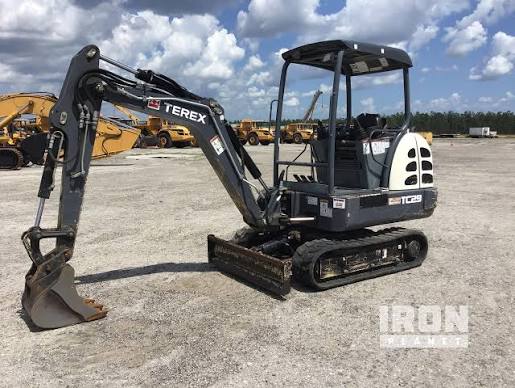

Terex TC29 Mini Excavator
1 / 5
Image 1 of 5
Image: fymasauctions.dk

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity13.8 gal
Hydraulic Pump Flow Capacity26.2 gal/min
Hydraulic System Fluid Capacity22.5 gal
Hydraulic System Relief Valve Pressure3,050 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelS 4L
Displacement91 in³
Power Measured @2,200 rpm
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab100 in
Tail Swing Radius52 in
Width to Outside of Tracks55 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge44 in
Max Travel Speed2.9 mph
Shoe Size12 in
Drawbar Pull6,300 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Vertical Wall Digging Depth60 in
Max Loading Height113 in
Max Cutting Height161 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth118 in
Max Cutting Height166 in
Max Loading Height118 in
Max Vertical Wall Digging Depth61 in
