Terex

TC48

Mini Excavator

All mini excavators

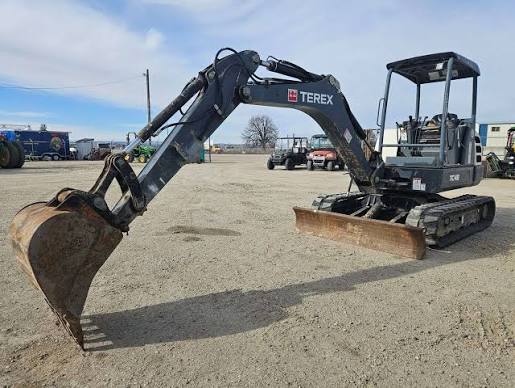

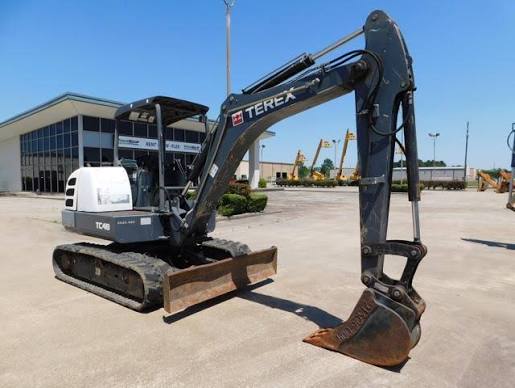

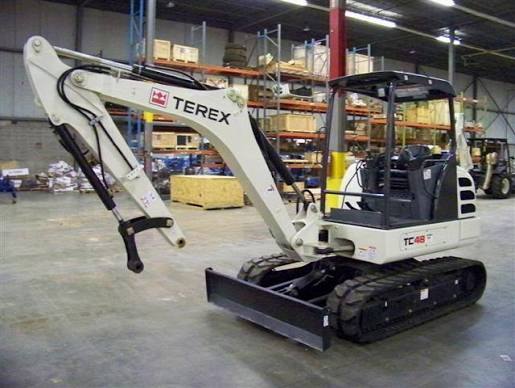

Terex TC48 Mini Excavator
1 / 5
Image 1 of 5
Image: machineryline.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity15.9 gal
Hydraulic Pump Flow Capacity42.1 gal/min
Hydraulic System Fluid Capacity27.0 gal
Hydraulic System Relief Valve Pressure3,552 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelS4 Q2-61 KL
Displacement152 in³
Power Measured @2,200 rpm
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Tail Swing Radius60 in
Width to Outside of Tracks76 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge60 in
Max Travel Speed3.2 mph
Shoe Size16 in
Drawbar Pull9,450 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Vertical Wall Digging Depth76 in
Max Loading Height143 in
Shipping Length of Unit219 in
Max Cutting Height205 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth154 in
Max Cutting Height209 in
Max Loading Height146 in
Max Vertical Wall Digging Depth83 in
