Terex

TC50

Mini Excavator

Operating Weight
11,067 lb
All mini excavators

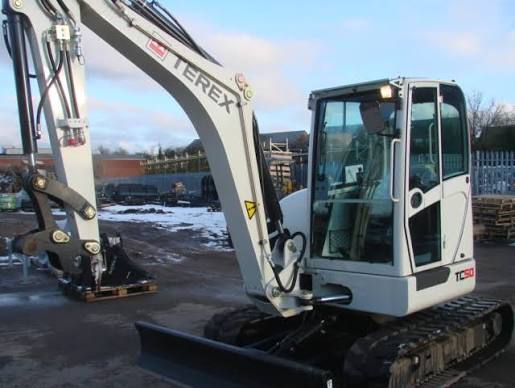

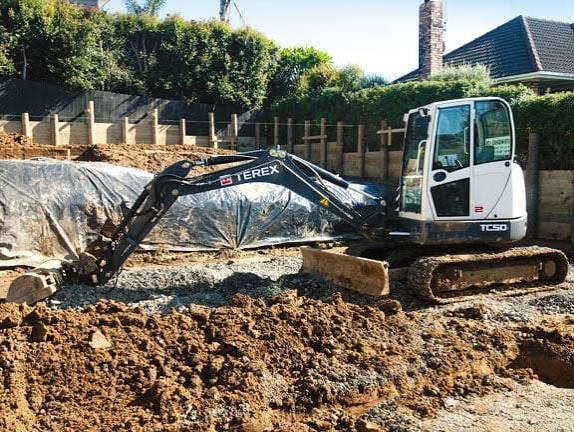

Terex TC50 Mini Excavator
1 / 5
Image 1 of 5
Image: constructionscalemodels.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,067 lb
Fuel Capacity17.2 gal
Hydraulic Pump Flow Capacity37.0 gal/min
Hydraulic System Fluid Capacity23.8 gal
Hydraulic System Relief Valve Pressure3,626 psi
Operating Voltage12 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model4TNV88
Displacement134 in³
Power Measured @2,200 rpm
Number of Cylinders4
Torque Measured @1,500 rpm
Max Torque106 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab154 in
Tail Swing Radius40 in
Width to Outside of Tracks73 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge57 in
Max Travel Speed3.2 mph
Shoe Size16 in
Drawbar Pull9,622 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Vertical Wall Digging Depth74 in
Max Loading Height142 in
Max Cutting Height206 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth154 in
Max Cutting Height211 in
Max Loading Height146 in
Max Vertical Wall Digging Depth81 in
