Terex

TL160

Wheel Loader

Operating Weight
20,283 lb
Bucket Capacity - heaped
2.11 yd³
Net Power
102.0 hp
All wheel loaders

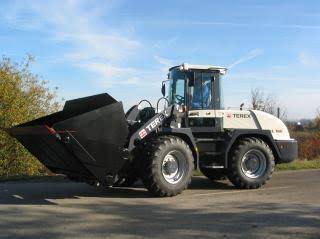

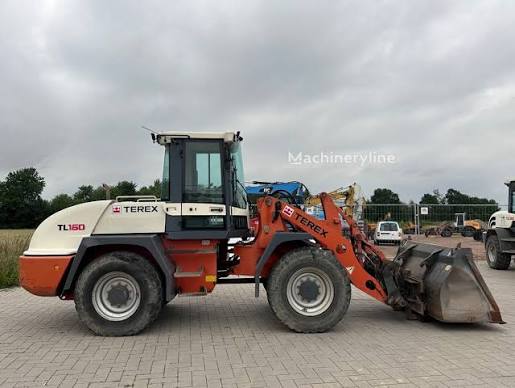

Terex TL160 Wheel Loader
1 / 5
Image 1 of 5
Image: machineryline.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,283 lb
Fuel Capacity37.0 gal
Tire Size15.5R25 EM 60 12 PR
Hydraulic System Fluid Capacity24.6 gal
Static Tipping Weight15,986 lb
Operating Voltage24 V
Turning Radius214 in
Rear Axle Oscillation24 °
Rated Bucket Capacity2.00 – 4.00 yd³

Engine

Engine specifications
Engine Model1104C-44T
Displacement268 in³
Power Measured @2,200 rpm
Net Power102.0 hp
Number of Cylinders4
Aspirationturbocharged
MakePerkins

Weights

Weights specifications
Operating Weight20,283 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.2 gal/min
Relief Valve Setting4,061 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab120 in
Wheelbase109 in
Width Over Tires85 in
Reach at Max Lift and Dump35 in
Length with Bucket on Ground264 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission Typehydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped2.11 yd³
Dump Clearance at Max Raise117 in
Breakout Force19,334 lb
Bucket Width91 in

General Specifications

General Specifications specifications
Operating Weight20,280 (9,200) — Starting 2016 Model Year
Bucket Capacity2.0 to 3.4 (1.5 to 2.6) — Starting 2016 Model Year
Engine typePerkins — Starting 2016 Model Year
Engine Power101 (74.5) — Starting 2016 Model Year
Max Dump Height9.6 (2.93) — Starting 2016 Model Year
