Terex

TR60

Off-Highway Truck

Operating Weight
210,490 lb
Max Speed
35.8 mph
Gross Power
650.0 hp
Net Power
645.0 hp
All off-highway trucks

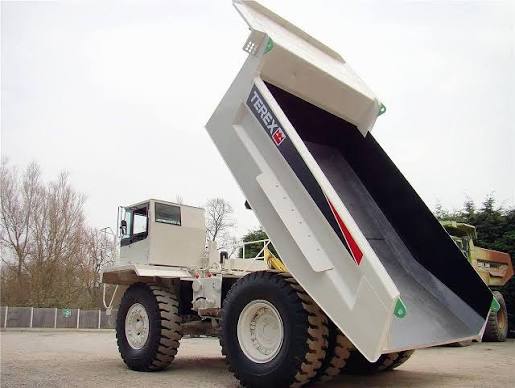

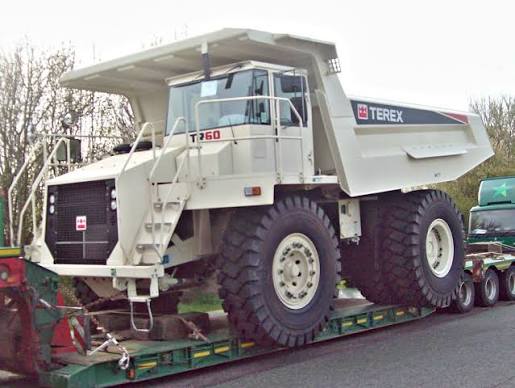

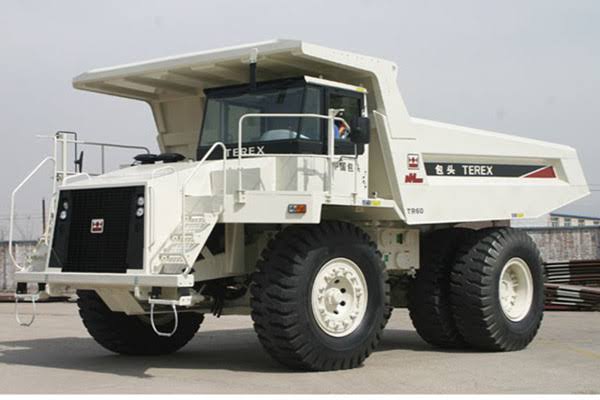

Terex TR60 Off-Highway Truck
1 / 5
Image 1 of 5
Image: 3000toys.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity160.1 gal
Tire Size24.00-35 bias ply
Engine Oil Capacity17.5 gal
Cooling System Fluid Capacity45.0 gal
Hydraulic System Fluid Capacity68.2 gal
Operating Voltage24 V
Steering System Fluid Capacity19.1 gal
Diff and Final Drive Fluid Capacity13.8 gal

Engine

Engine specifications
Engine ModelQSK19-C650
Displacement1,150 in³
Power Measured @2,100 rpm
Gross Power650.0 hp
Net Power645.0 hp
Number of Cylinders6
Max Torque2,275 lb-ft
MakeCummins
Rated Engine Speed68 rpm

Weights

Weights specifications
Operating Weight210,490 lb
Empty Weight90,940 lb
Loaded Weight210,940 lb
Weight Distribution Front - loaded34.0 %
Weight Distribution Rear - loaded66.0 %
Weight Distribution Front - empty48.0 %
Weight Distribution Rear - empty52.0 %

Dimensions

Dimensions specifications
Ground Clearance28 in
Wheelbase162 in
Overall Length359 in
Overall Width198 in
Overall Height174 in
Dump Height316 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed35.8 mph
Transmission TypeAllison M6610AR
Number of Gears - Forward6
Number of Gears - Reverse2

Drive System

Drive System specifications
Drive Config4x2

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank119,986.9 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle58 °
Raise Time16.0 s
Lower Time4.0 s
Load Capacity - heaped45.80 yd³
Load Capacity - Struck34.10 yd³

Approximate Weights - Flat Floor

Approximate Weights - Flat Floor specifications
Body1,300 lb
