Terex
Caterpillar

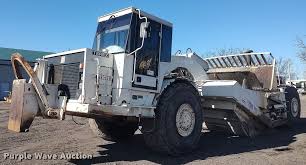

633E II
Scraper
91 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Fuel Capacity | 180.0 gal |
|---|---|
| Tire Size | 29.5 R 25 Radial 25" |
| Cooling System Fluid Capacity | 22.5 gal |
| Transmission Fluid Capacity | 25.7 gal |
| Engine Oil Fluid Capacity | 13.0 gal |
| Hydraulic System Fluid Capacity | 54.0 gal |
| Operating Voltage | 24 V |
| Differential Fluid Capacity | 9.0 gal |
| Alternator Supplied Amperage | 100 A |
Weights
| Total Operating - empty | 62,922 lb |
|---|---|
| Total Operating - Loaded | 110,917 lb |
| Front Axle - empty | 36,600 lb |
| Rear Axle - empty | 27,322 lb |
| Front Axel - loaded | 56,456 lb |
| Rear Axle - loaded | 54,461 lb |
Dimensions
| Height - Top of Cab | 131 in |
|---|---|
| Wheelbase | 276 in |
| Overall Length | 489 in |
| Overall Width | 134 in |
| Overall Height | 150 in |
| Tractor Ground Clearance | 24 in |
Transmission
| Max Speed - Forward | 28.3 mph |
|---|---|
| Max Speed - Reverse | 5.2 mph |
| Number of Forward Gears | 7 |
| Number of Reverse Gears | 1 |
| Transmission Type | Funk DF158 Powershift counter-shaft type Transmission with integral torque converter |
Bowl
| Heaped Capacity | 20.00 yd³ |
|---|---|
| Width of Cut | 119 in |
| Max Depth of Cut | 1 in |
| Rated Payload | 48,000 lb |
| Struck Capacity | 14.00 yd³ |
Scraper Engine
| Net Power | 158.0 hp |
|---|---|
| Gross Power | 167.0 hp |
| Displacement | 360 in³ |
| Make | Terex |
| Power Measured @ | 2,200 rpm |
Tractor Engine
| Net Power | 176.0 hp |
|---|---|
| Gross Power | 185.0 hp |
| Displacement | 360 in³ |
| Make | Terex |
| Power Measured @ | 2,200 rpm |
| Aspiration | Turbocharged |
