Terex
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

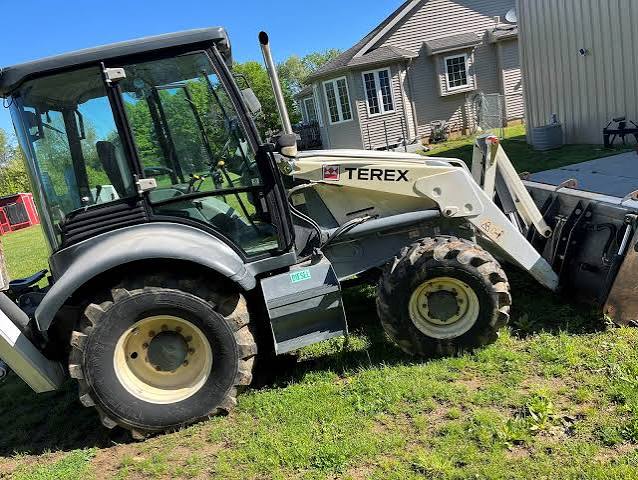

Image 1 of 5
Specifications
61 data points
Operating Specifications
| Operating Weight | 15,151 lb |
|---|---|
| Fuel Capacity | 34.4 gal |
| Hydraulic System Fluid Capacity | 37.8 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 12.5/80x18 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 75 A |
| Turning Radius | 152 in |
| Transmission Fluid Capacity | 4.0 gal |
| Max Weight | 15,151 lb |
| Rear Axle Fluid Capacity | 4.7 gal |
| Front Axle Fluid Capacity | 3.4 gal |
Engine
| Engine Model | 1004C-44TL |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 92.0 hp |
| Net Power | 86.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 275 lb-ft |
Hydraulic System
| Pump Flow Capacity | 37.6 gal/min |
|---|---|
| Relief Valve Pressure | 3,250 psi |
| Pump Type | load-sensing twin gear pumps |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 91 in |
| Transport Length | 284 in |
| Height to Top of Suspended Cab | 107 in |
Transmission
| Max Speed | 23.3 mph |
|---|---|
| Max Speed - Reverse | 23.3 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Carraro power shuttle |
Tires & Wheels
| Rear Tires Size | 19.5Lx24 |
|---|
General Specifications
| Operating Weight lbs (kg) | 15,151 (6,887) — Starting 2009 Model Year |
|---|---|
| Max Digging Depth ft. (m) | 14.7 (4.5) — Starting 2012 Model Year |
| Lift Capacity lbs (kgs) | 7,604 (3,449) — Starting 2010 Model Year |
| Loading Height ft (m) | 12.3 (3.74) — Starting 2010 Model Year |
| 4th Gear Fwd mph (kmh) | 23.3 (37.5) — Starting 2010 Model Year |
| Backhoe Loading Height ft. (m) | 12.3 (3.74) — Starting 2009 Model Year |
| Travel Speed 4th Gear Fwd MPH (kmh) | 22.9 (36.9) — Starting 2012 Model Year |
| Breakout Force lbs (kgs) | 10,485 (4,756) — Starting 2010 Model Year |
| Digging Depth ft (m) | 14.8 (4.5) — Starting 2010 Model Year |
| Loader SAE HP (kw) | 86 (64.3) — Starting 2012 Model Year |
| Loader Lift Capacity lbs. (kg) | 7,604 (3,449) — Starting 2009 Model Year |
| Loader Breakout Force lbs. (kg) | 10,485 (4,756) — Starting 2009 Model Year |
| SAE HP (KW) | 87 (64.88) — Starting 2010 Model Year |
| Weight lbs (kg) | 15,151 (6,887) — Starting 2010 Model Year |
Backhoe
| Dig Depth | 176 in |
|---|---|
| Reach From Swivel | 231 in |
| Dig Depth - Extended | 231 in |
| Load Height - Extended | 176 in |
| Reach From Swivel - Extended | 282 in |
| Reach at Load Height - Extended | 110 in |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 101 in |
| Bucket Breakout Force | 10,485 lb |
| Bucket Width | 91 in |
| Reach at Max Dump Height | 26 in |
| Dig Depth | 7 in |
