Thomas

153

Skid Steer Loader

Operating Weight
5,520 lb
Bucket Capacity
0.50 yd³
Gross Power
50.0 hp
All skid steer loaders

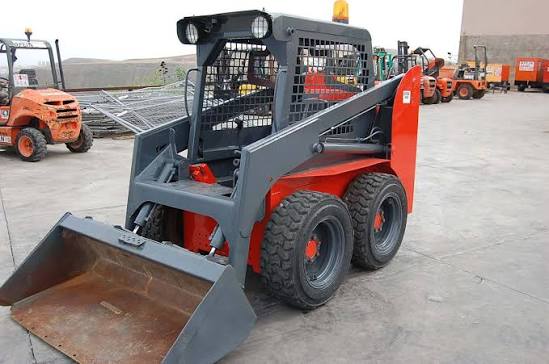

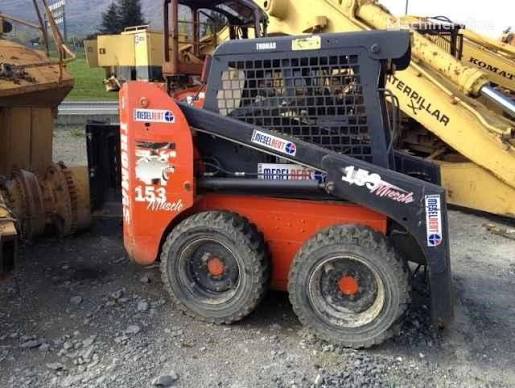

Thomas 153 Skid Steer Loader
1 / 5
Image 1 of 5
Image: constructionscalemodels.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,520 lb
Fuel Capacity16.8 gal
Hydraulic System Fluid Capacity16.6 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Operating Speed6.0 mph

Engine

Engine specifications
Engine ModelV2203E
Displacement134 in³
Power Measured @2,800 rpm
Gross Power50.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.0 gal/min
Relief Valve Pressure2,400 psi
Pump TypeHydroststic

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab74 in
Wheelbase36 in
Width Over Tires57 in
Reach at Max Lift and Dump28 in
Length with Bucket128 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket73 in
Turning Radius from Center - machine rear48 in
Length w/o Bucket106 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,500 lb
Tipping Angle3,000 °
Breakout Force4,150 psi
