Thomas

15S

Mini Excavator

Operating Weight
3,307 lb
Max Digging Depth
94 in
Net Power
16.8 hp
All mini excavators

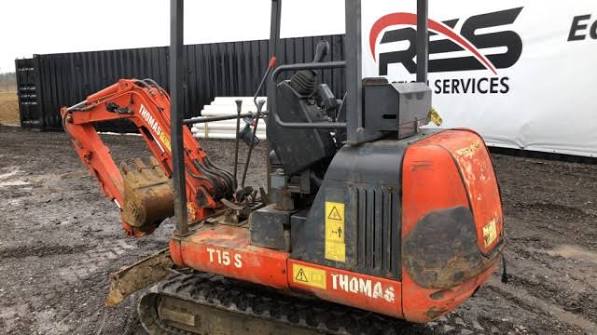

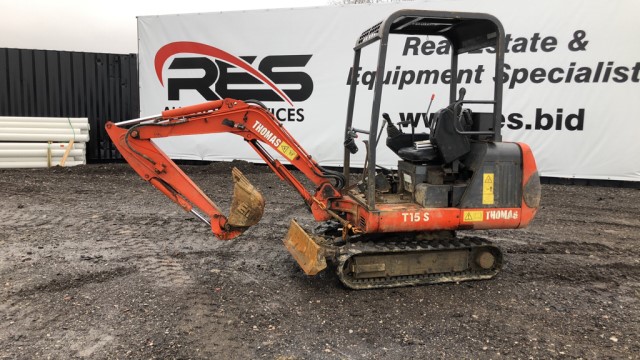

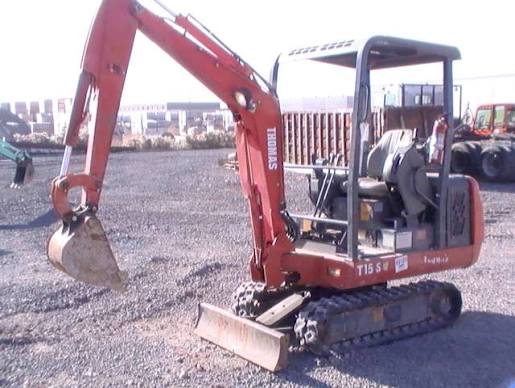

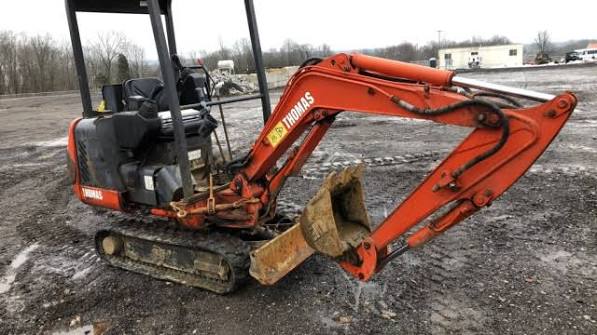

Thomas 15S Mini Excavator
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,307 lb
Fuel Capacity6.3 gal
Hydraulic Pump Flow Capacity12.3 gal/min
Hydraulic System Relief Valve Pressure8,106 psi

Engine

Engine specifications
Engine ModelL3E
Displacement58 in³
Power Measured @2,400 rpm
Net Power16.8 hp

Dimensions

Dimensions specifications
Height - Top of Cab89 in
Length of Track on Ground46 in
Tail Swing Radius46 in
Width to Outside of Tracks41 in

Undercarriage

Undercarriage specifications
Track Gauge31 in
Max Travel Speed2.5 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth94 in
Max Vertical Wall Digging Depth69 in
Max Loading Height90 in
Shipping Length of Unit148 in
Max Cutting Height133 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
