Tigercat

H822C

Processor

Operating Weight
54,000 lb
Lift Capacity at Max Reach
8,356 lb
Gross Power
300.0 hp
All processors/harvesters

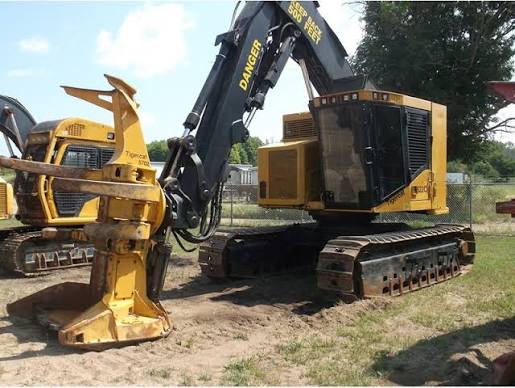

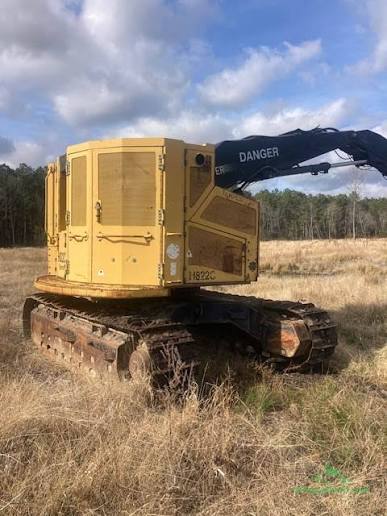

Tigercat H822C Processor
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,000 lb
Fuel Capacity129.5 gal
Operating Voltage24 V
Alternator Supplied Amperage110 A
Hydraulic System Fluid Capacity43.6 gal

Engine

Engine specifications
Engine ModelQSL9
Power Measured @1,800 rpm
Gross Power300.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab132 in
Overall Width135 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Ground Clearance30 in

Boom

Boom specifications
Lift Capacity at Max Reach8,356 lb
Max Reach w/ Head352 in
