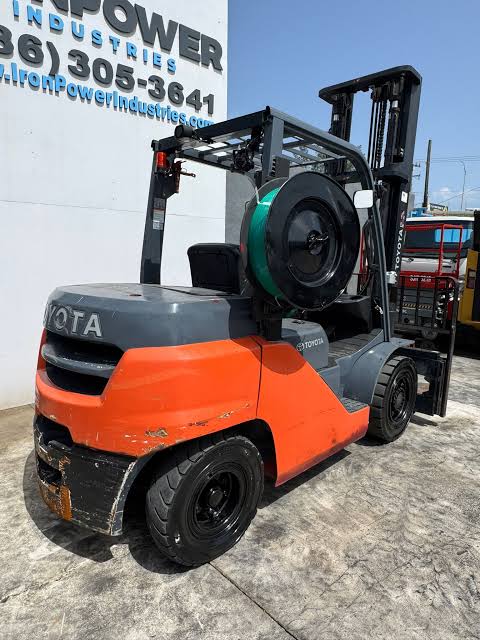

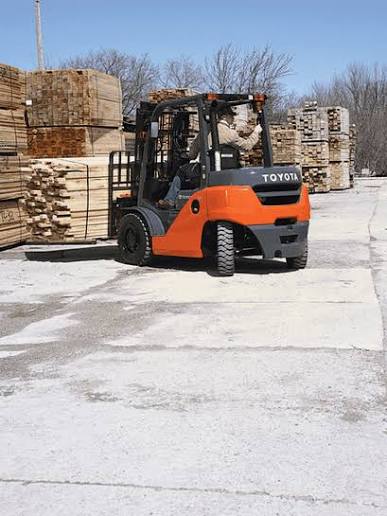

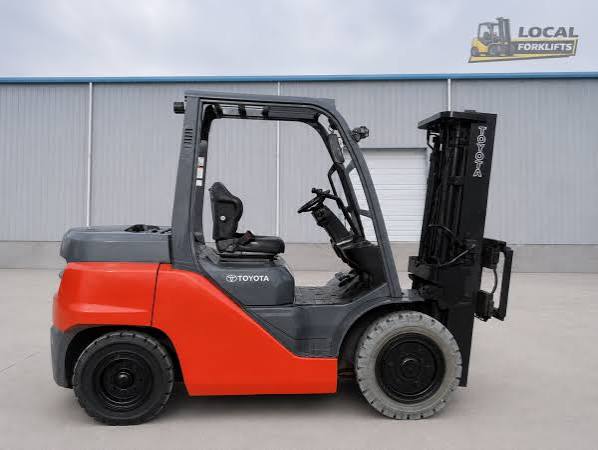

Toyota 8FD40U Forklift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,559 lb
Number of Front Wheels2
Number of Rear Wheels2
Tire TypePneumatic
Drawbar Pull8,157 lb
Fuel Capacity23.8 gal

Engine

Engine specifications
Engine Model1KD
Displacement182 in³
Power Measured @2,200 rpm
Number of Cylinders4
Torque Measured @1,500 rpm
Engine MakeTOYOTA
Power74.0 hp
Fuel TypeDiesel
Torque220 lb-ft
Battery12 V

Hydraulic System

Hydraulic System specifications
Main pump flow standard33.9 gal/min
Maximum operating pressure2,630 psi

Dimensions

Dimensions specifications
Ground Clearance5 in
Wheelbase76 in
Overall Width54 in
Turning Radius106 in
Overall Height - mast lowered84 in
Length to Fork Face118 in
Gradeability39.0 %
Height to Top of Overhead Guard88 in
Max Fork Height121 in
Right Angle Stack126 in
Free lift4 in

Transmission

Transmission specifications
Max Speed - Forward13.1 mph
Max Speed - Reverse13.1 mph
Transmission TypePowershift
Travelspeeds(BACKWRD)Speed range1
Travelspeeds(FRWD)Speed range1

Brakes & Steering

Brakes & Steering specifications
Service brakeHydraulic
Parking brakeHand

Tires & Wheels

Tires & Wheels specifications
Standard_Option_Front—
Standard_Rear7.00-12-12PR

Mast

Mast specifications
Load Capacity8,819 lb
Load Center24 in
Lift Speed1.2 mph
Mast Tip Forward6 °
Mast Tip Rear12 °
Lower Speed1.2 mph
Max Fork Spread46 in
Fork Turn L/R6 °
