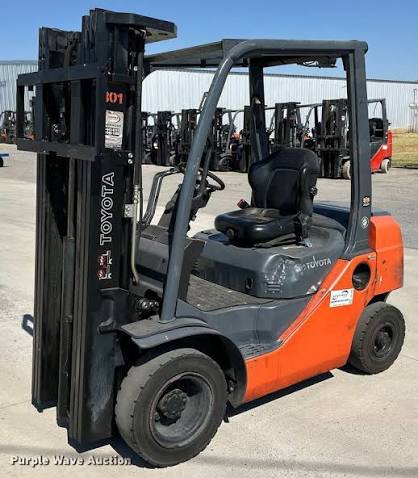

Toyota
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 7,253 lb |
|---|---|
| Max Speed | 11.8 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Pneumatic |
| Drawbar Pull | 4,255 lb |
| Fuel Capacity | 15.9 gal |
Engine
| Engine Model | 1DZ-II |
|---|---|
| Displacement | 110 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 3 |
| Torque Measured @ | 1,600 rpm |
| Engine Make | TOYOTA |
| Power | 55.0 hp |
| Fuel Type | Diesel |
| Torque | 148 lb-ft |
Hydraulic System
| Main pump flow standard | 19.0 gal/min |
|---|---|
| Maximum operating pressure | 2,275 psi |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 66 in |
| Overall Width | 46 in |
| Turning Radius | 85 in |
| Overall Height - mast lowered | 85 in |
| Length to Fork Face | 102 in |
| Gradeability | 39.0 % |
| Height to Top of Overhead Guard | 84 in |
| Max Fork Height | 132 in |
| Right Angle Stack | 103 in |
| Free lift | 6 in |
Brakes & Steering
| Service brake | Hydraulic |
|---|---|
| Parking brake | Mechanical |
Tires & Wheels
| Rear Tires Size | 6.00-9-10PR (1) |
|---|---|
| Front Tires Size | 7.00-12-12PR (1) |
Mast
| Load Capacity | 3,968 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.4 mph |
| Lower Speed | 1.1 mph |
| Max Fork Spread | 10 in |
