Toyota
Hyster
H110FT
Forklift
38 specifications
1 / 5

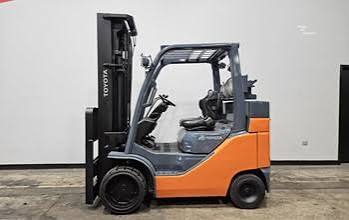

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 14,903 lb |
|---|---|
| Max Speed | 13.0 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
| Hydraulic System Relief Valve Pressure | 2,630 psi |
| Auxiliary hydraulic flow | 33.8 gal/min |
Engine
| Engine Model | 1FS |
|---|---|
| Displacement | 224 in³ |
| Power Measured @ | 2,350 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | TOYOTA |
| Power | 84.0 hp |
| Torque | 214 lb-ft |
Dimensions
| Wheelbase | 62 in |
|---|---|
| Overall Width | 56 in |
| Turning Radius | 89 in |
| Length to Fork Face | 101 in |
| Gradeability | 37.0 % |
| Height to Top of Overhead Guard | 84 in |
| Max Fork Height | 121 in |
| Free lift | 4 in |
| Forward Tilt | 5 ° |
| Fork Spread Max | 47 in |
| Fork Spread Min-outer edge to edge | 12 in |
Transmission
| Transmission Type | Automatic |
|---|---|
| Speed ranges (forwards/backward) | 1 |
Brakes & Steering
| Service brake | Hand |
|---|---|
| Parking brake | Hydraulic |
Mast
| Load Capacity | 9,921 lb |
|---|---|
| Load Center | 24 in |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 6 ° |
| Lift height- largest mast | 168 in |
| Lift height-smallest mast | 83 in |
Electrical System
| Battery | 12 V /48 Ah |
|---|
Performance
| Drawbar Pull Max -Full Load | 9,921 lb |
|---|---|
| Drawbar Pull Max -No Load | 2,668 lb |
