Ursus
Fendt
817
Tractor
23 specifications
1 / 5

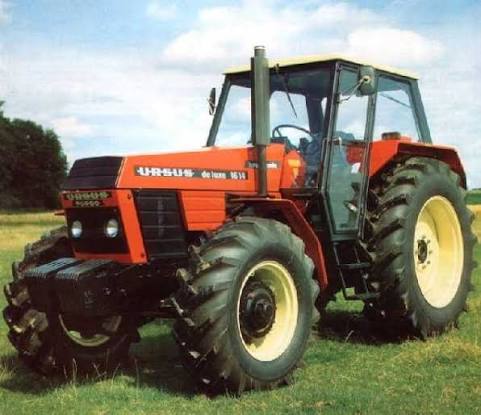

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 11,085 lb |
|---|---|
| Fuel Capacity | 45.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,125 lb |
| 3 Point Hitch Type | cat III |
| Alternator Supplied Amperage | 53 A |
| Operating Voltage | 14 V |
| Cooling System Fluid Capacity | 7.7 gal |
| Hydraulic System Fluid Capacity | 12.2 gal |
| Engine Oil Capacity | 6.4 gal |
Engine
| Engine Model | Z 8602.12 TURBO |
|---|---|
| Displacement | 418 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 155.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| PTO Power | 140.0 hp |
Hydraulic System
| Pump Flow Capacity | 14.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,321 psi |
Dimensions
| Height - Top of Cab | 109 in |
|---|---|
| Wheelbase | 107 in |
| Overall Length | 15 in |
| Tire Size | front 14.9R24 rear 18.4R38 |
| Width Outside Frame | 90 in |
Transmission
| Max Speed | 19.5 mph |
|---|---|
| Number of Forward Gears | 16 |
| Transmission Type | mechanical synchromesh with reductor |
| Number of Reverse Gears | 8 |
Axles
| Final Drive | rear axle |
|---|
