Valtra
Fendt
817
Tractor
23 specifications
Valtra
Advance N141
- Operating Weight
- 10,913 lb
- Displacement
- 299 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 152.0 hp
1 / 5

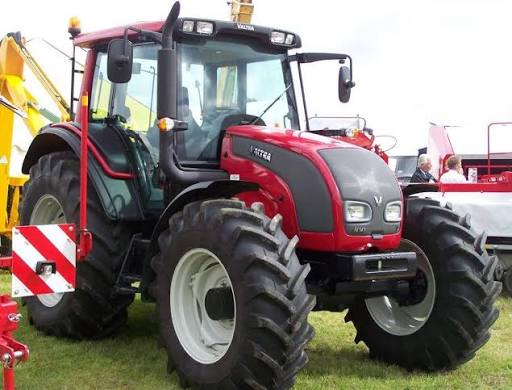

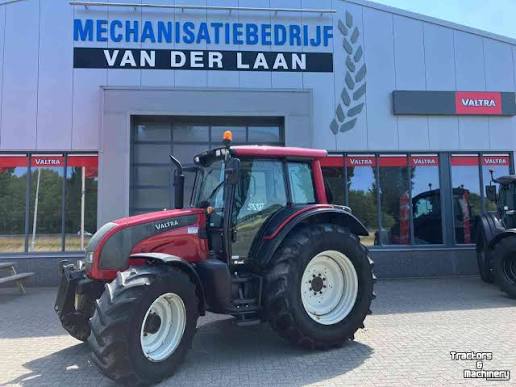

Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 10,913 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Turning Radius | 175 in |
Engine
| Engine Model | 49CWA |
|---|---|
| Displacement | 299 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 152.0 hp |
| Net Power | 150.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 30.4 gal/min |
|---|---|
| Relief Valve Pressure | 2,973 psi |
Dimensions
| Height - Top of Cab | 90 in |
|---|---|
| Wheelbase | 102 in |
| Overall Length | 15 in |
| Tire Size | 16.9R28/18.4R38 |
| Width Outside Frame | 90 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 36 |
| Transmission Type | power shuttle transmission |
| Number of Reverse Gears | 36 |
