Valtra
Classic T131
- Operating Weight
- 12,456 lb
- Displacement
- 403 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 154.0 hp
1 / 5

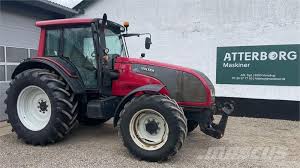

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 12,456 lb |
|---|---|
| Fuel Capacity | 43.6 gal |
| 3 Point Hitch Type | Cat III |
| Turning Radius | 221 in |
Engine
| Engine Model | 66 CTA-4V |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 154.0 hp |
| Net Power | 148.0 hp |
| Number of Cylinders | 6 |
Hydraulic System
| Pump Flow Capacity | 19.3 gal/min |
|---|---|
| Relief Valve Pressure | 2,843 psi |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 109 in |
| Overall Length | 17 in |
| Tire Size | 16.9R28 - 20.8R38 |
| Width Outside Frame | 93 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 36 |
| Transmission Type | Mechanical synchronised shuttle |
| Number of Reverse Gears | 36 |
