Venieri

VF9.23

Backhoe Loader

Bucket Capacity
1.60 yd³
Max Speed
20.6 mph
Gross Power
112.7 hp
All backhoe loaders

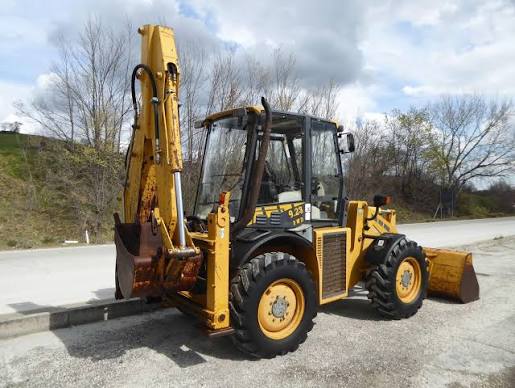

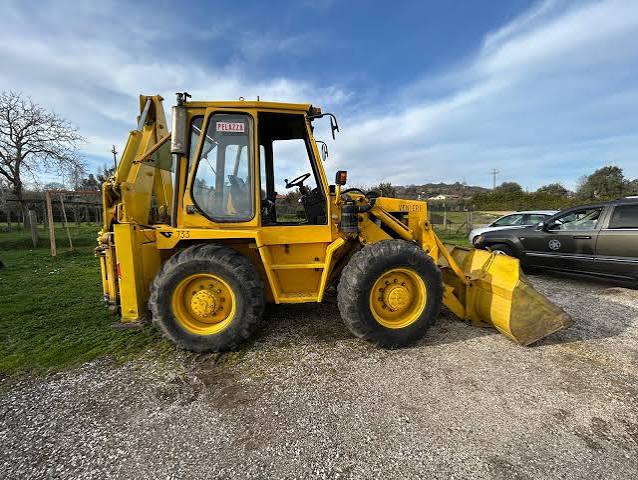

Venieri VF9.23 Backhoe Loader
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd18,739 lb
Turning Radius178 in

Engine

Engine specifications
Engine Model1004-40T
Displacement244 in³
Power Measured @2,200 rpm
Gross Power112.7 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.4 gal/min
Relief Valve Pressure3,336 psi
Pump TypePiston

Dimensions

Dimensions specifications
Transport Width89 in
Transport Length229 in

Transmission

Transmission specifications
Max Speed20.6 mph
Number of Forward Gears3
Number of Reverse Gears2
Transmission TypeHydrostatic

Backhoe

Backhoe specifications
Dig Depth214 in
Reach From Swivel220 in
Load Height205 in

Loader

Loader specifications
Bucket Capacity1.60 yd³
Clearance at Max Dump Height134 in
Bucket Width89 in
