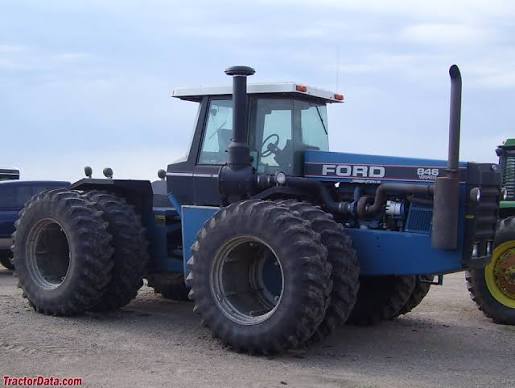

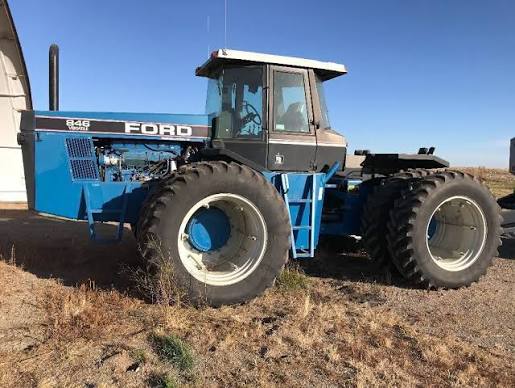

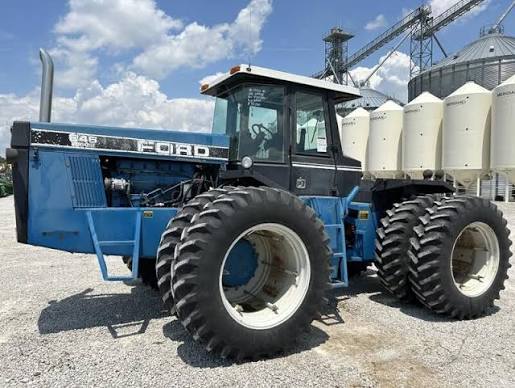

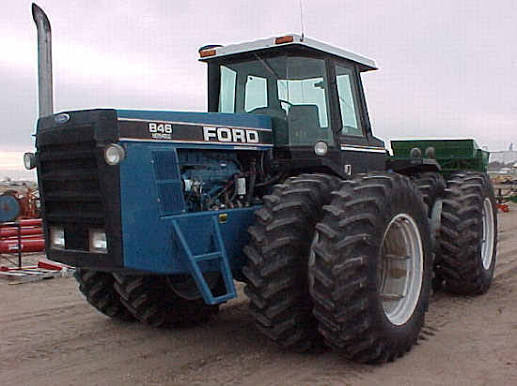

Versatile
846
- Operating Weight
- 27,999 lb
- Displacement
- 610 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 230.0 hp
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 27,999 lb |
|---|---|
| Fuel Capacity | 246.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 21,700 lb |
| 3 Point Hitch Type | 4N |
| Alternator Supplied Amperage | 90 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 13.8 gal |
| Hydraulic System Fluid Capacity | 15.3 gal |
| Engine Oil Capacity | 7.1 gal |
Engine
| Engine Model | L10 |
|---|---|
| Displacement | 610 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 230.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | Cummins |
| PTO Power | 202.0 hp |
| Bore | 5 in |
| Stroke | 5 in |
Hydraulic System
| Pump Flow Capacity | 25.2 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,250 psi |
| Hydraulic System Type | Closed center load sensing |
Dimensions
| Height - Top of Cab | 131 in |
|---|---|
| Wheelbase | 130 in |
| Overall Length | 260 in |
Transmission
| Number of Forward Gears | 12 |
|---|---|
| Transmission Type | Full power shift |
| Number of Reverse Gears | 3 |
