Vibromax

1805D

Smooth Drum Roller

Operating Weight
24,912 lb
Max Speed
7.4 mph
Drum Width
83 in
Gross Power
185.1 hp
All smooth drum rollers

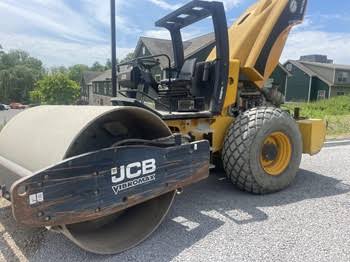

Vibromax 1805D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,912 lb
Max Speed7.4 mph
Fuel Capacity104.9 gal
Operating Width89 in

Engine

Engine specifications
Engine Model6BT5.9C
Displacement359 in³
Power Measured @2,300 rpm
Gross Power185.1 hp
Aspirationturbocharged
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab128 in
Wheelbase10 in
Overall Length19 in
Turning Radius - Inside142 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x20-26 8PR

Drum

Drum specifications
Drum Width83 in
Drum Diameter63 in
Vibration Frequency 129 vpm
Vibration Frequency 235 vpm
Static Linear Load25 lb-ft
Vibration Frequency—
Nominal Amplitude - Med0 in
