Vibromax

W355K

Smooth Drum Roller

Operating Weight
8,587 lb
Max Speed
6.9 mph
Drum Width
51 in
Gross Power
46.0 hp
All smooth drum rollers

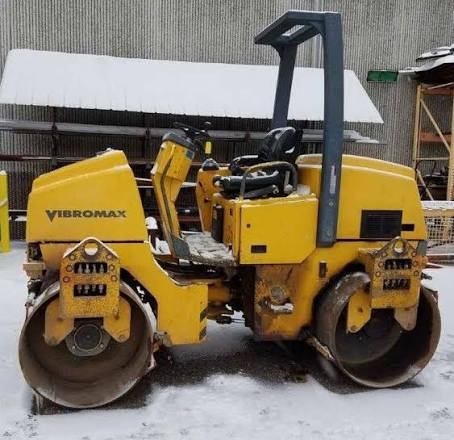

Vibromax W355K Smooth Drum Roller
1 / 5
Image 1 of 5
Image: heavy-spec.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,587 lb
Max Speed6.9 mph
Fuel Capacity20.1 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity13.3 gal
Engine Oil Capacity2.6 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine ModelV2203-E
Displacement134 in³
Power Measured @2,800 rpm
Gross Power46.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab101 in
Wheelbase7 in
Overall Length9 in
Overall Width50 in

Tires & Wheels

Tires & Wheels specifications
Tires8.25R15

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 155 vpm
Vibration Frequency 250 vpm
Static Linear Load6 lb-ft
Nominal Amplitude - Med0 in
