Vogele
Roadtec Astec
RP-175
Asphalt Paver
21 specifications

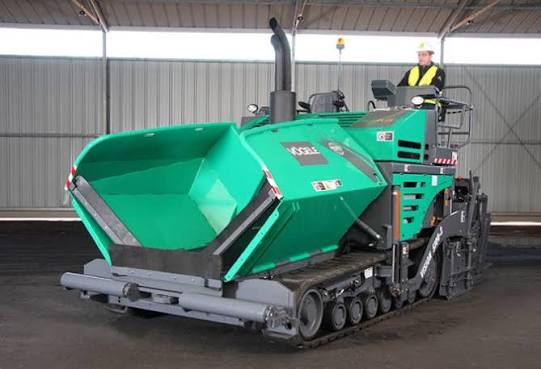

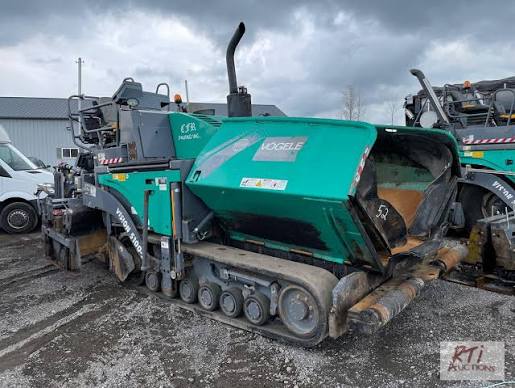

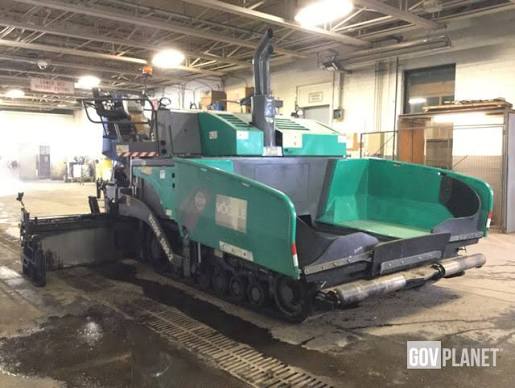

Vogele
VISION 5100-2
- Operating Weight w/ Screed
- 33,000 lb
- Paving Width - max
- 228 in
- Gross Power
- 170.0 hp
- Length w/ Screed
- 219 in
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight w/ Screed | 33,000 lb |
|---|---|
| Operating Weight w/o Screed | 27,800 lb |
| Fuel Capacity | 60.0 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | QSB 6.7 C-170 |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 170.0 hp |
| Number of Cylinders | 6 |
| Make | Cummins |
Dimensions
| Length of Track on Ground | 102 in |
|---|---|
| Transport Height | 126 in |
| Track Width | 14 in |
| Length w/ Screed | 219 in |
| Width w/ Hopper Open | 131 in |
Hopper/Paver
| Paving Width - max | 228 in |
|---|---|
| Paving Speed - max | 2.8 mph |
| Hopper Capacity | 7 lb |
| Travel Speed - max | 8.0 mph |
| Auger Diameter | 16 in |
| Paving Thickness - max | 12 in |
