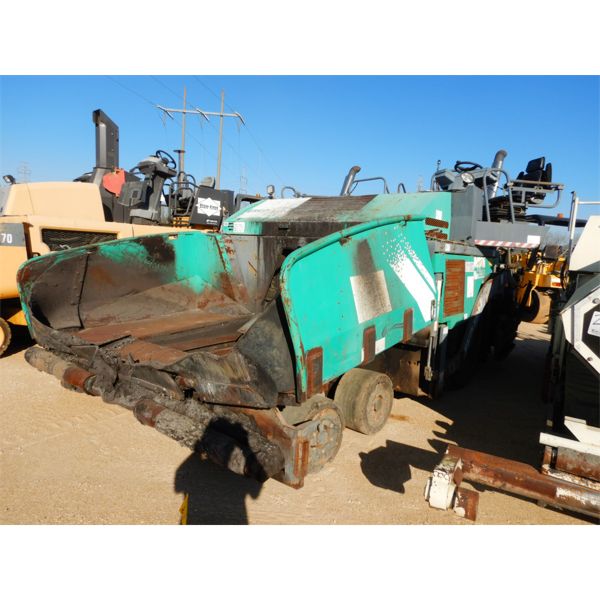

Vogele
VISION 5203-2
- Operating Weight w/ Screed
- 40,500 lb
- Paving Width - max
- 306 in
- Gross Power
- 240.0 hp
- Length w/ Screed
- 263 in
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight w/ Screed | 40,500 lb |
|---|---|
| Operating Weight w/o Screed | 32,400 lb |
| Fuel Capacity | 106.0 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | QSB 6.7 C240 |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 240.0 hp |
| Number of Cylinders | 6 |
| Make | Cummins |
Dimensions
| Wheelbase | 97 in |
|---|---|
| Transport Height | 110 in |
| Tire Size | 18.00x25 |
| Length w/ Screed | 263 in |
| Width w/ Hopper Open | 130 in |
| Length w/o Screed | 199 in |
Hopper/Paver
| Paving Width - max | 306 in |
|---|---|
| Paving Speed - max | 2.8 mph |
| Hopper Capacity | 9 lb |
| Travel Speed - max | 12.0 mph |
| Auger Diameter | 16 in |
| Paving Thickness - max | 12 in |
