Volvo

4600B

Wheel Loader

Bucket Capacity - heaped
5.90 yd³
Gross Power
264.0 hp
Net Power
252.0 hp
All wheel loaders

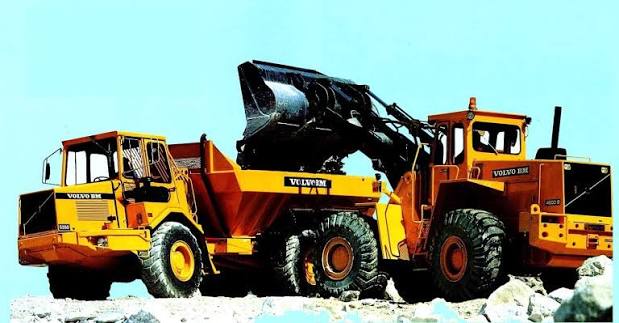

Volvo 4600B Wheel Loader
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size26.5R25
Hydraulic System Fluid Capacity79.3 gal
Static Tipping Weight33,731 lb
Operating Voltage24 V
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity13.3 gal
Transmission Fluid Capacity11.9 gal
Engine Oil Capacity8.2 gal
Static Tipping Load33,731 lb

Engine

Engine specifications
Engine ModelTD 101 G
Displacement586 in³
Power Measured @2,200 rpm
Gross Power264.0 hp
Net Power252.0 hp
Number of Cylinders6
Aspirationturbo
Torque Measured @1,400 rpm
Max Torque980 lb-ft

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab141 in
Wheelbase141 in
Width Over Wheels121 in

Transmission

Transmission specifications
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped5.90 yd³

Blades

Blades specifications
Blade Width126 in
Blade Capacity5.00 yd³

Wheels

Wheels specifications
Front Wheels Drum Diameter55 in
Front Wheels Drum Width30 in
Rear Wheels Drum Diameter55 in
Rear Wheels Drum Width30 in
