Volvo

A25C 6x6

Off-Highway Truck

Max Speed
32.3 mph
Gross Power
255.0 hp
Net Power
251.0 hp
All off-highway trucks

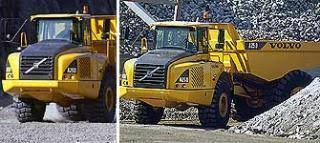

Volvo A25C 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Tire Size23.5 R 25
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity9.8 gal
Hydraulic System Fluid Capacity47.6 gal
Operating Voltage24 V
Alternator Supplied Amperage60 A
Transmission Fluid Capacity4.3 gal

Engine

Engine specifications
Engine ModelTD73 KCE
Displacement411 in³
Power Measured @2,400 rpm
Gross Power255.0 hp
Net Power251.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,200 rpm
Max Torque797 lb-ft

Weights

Weights specifications
Total Empty39,176 lb
Front Axle - empty19,930 lb
Total Loaded88,780 lb
Rear Axle - empty19,246 lb
Front Axle - loaded25,353 lb
Rear Axle - loaded63,427 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase165 in
Overall Length381 in
Overall Width110 in
Overall Height130 in
Dump Height252 in
Dump Ground Clearance25 in

Transmission

Transmission specifications
Max Speed32.3 mph
Transmission Typeelectronically controlled fully automatic planetary transmission
Number of Forward Gears10
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload49,604 lb
Dump Angle70 °
Raise Time15.0 s
Lower Time12.0 s
Capacity - Heaped17.70 yd³
Capacity - Struck13.90 yd³
