Volvo

A25D

Off-Highway Truck

Max Speed
33.0 mph
Gross Power
310.0 hp
Net Power
309.0 hp
All off-highway trucks

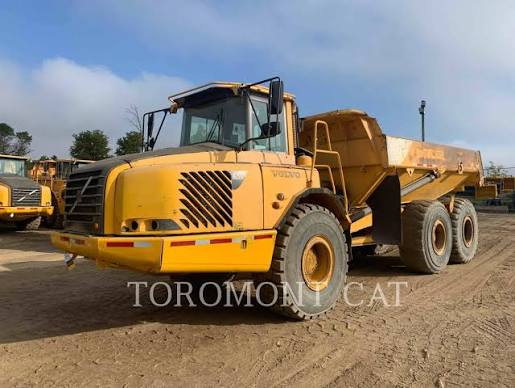

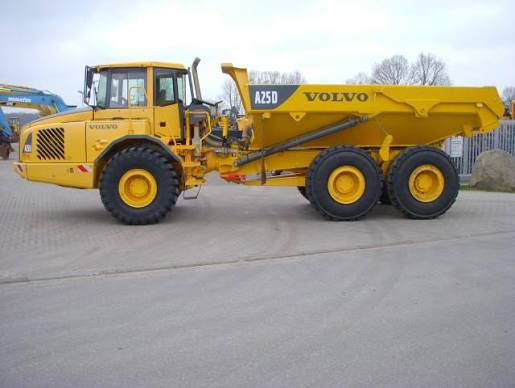

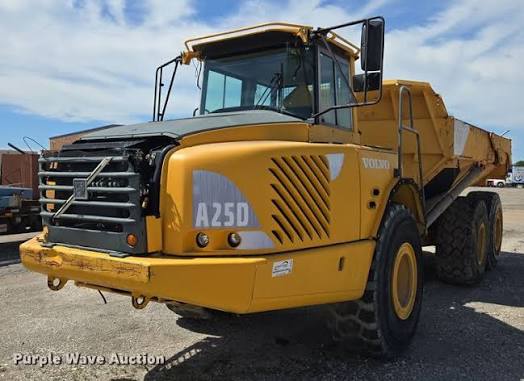

Volvo A25D Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.7 gal
Tire Size23.5 R 25
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity18.8 gal
Hydraulic System Fluid Capacity46.3 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A
Transmission Fluid Capacity10.9 gal

Engine

Engine specifications
Engine ModelD10BACE2*
Displacement586 in³
Power Measured @2,000 rpm
Gross Power310.0 hp
Net Power309.0 hp
AspirationTurbocharged
Torque Measured @1,350 rpm
Max Torque1,007 lb-ft

Weights

Weights specifications
Total Empty42,924 lb
Front Axle - empty27,337 lb
Total Loaded95,835 lb
Rear Axle - empty15,587 lb
Front Axle - loaded34,502 lb
Rear Axle - loaded61,553 lb

Dimensions

Dimensions specifications
Ground Clearance24 in
Wheelbase168 in
Overall Length393 in
Overall Width124 in
Overall Height137 in
Dump Height204 in
Dump Ground Clearance31 in

Transmission

Transmission specifications
Max Speed33.0 mph
Transmission TypeFully Automatic
Number of Forward Gears6
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload52,911 lb
Dump Angle74 °
Lower Time9.0 s
Capacity - Heaped17.09 yd³
Capacity - Struck12.50 yd³
