Volvo

A35C 6x6

Off-Highway Truck

Max Speed
33.8 mph
Gross Power
358.0 hp
Net Power
351.0 hp
All off-highway trucks

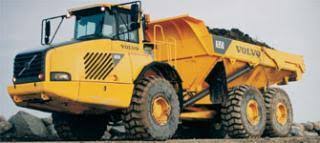

Volvo A35C 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size26.5 R 25
Engine Oil Capacity8.2 gal
Cooling System Fluid Capacity23.8 gal
Hydraulic System Fluid Capacity51.3 gal
Operating Voltage24 V
Alternator Supplied Amperage60 A
Transmission Fluid Capacity10.6 gal

Engine

Engine specifications
Engine ModelTD122 KME
Displacement732 in³
Power Measured @2,100 rpm
Gross Power358.0 hp
Net Power351.0 hp
AspirationTurbocharged
Torque Measured @1,100 rpm
Max Torque1,169 lb-ft

Weights

Weights specifications
Total Empty56,659 lb
Front Axle - empty29,211 lb
Total Loaded127,207 lb
Rear Axle - empty27,448 lb
Front Axle - loaded36,266 lb
Rear Axle - loaded90,941 lb

Dimensions

Dimensions specifications
Ground Clearance23 in
Wheelbase178 in
Overall Length430 in
Overall Width126 in
Overall Height143 in
Dump Height298 in
Dump Ground Clearance42 in

Transmission

Transmission specifications
Max Speed33.8 mph
Transmission TypeFully Automatic
Number of Forward Gears6
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload70,548 lb
Dump Angle73 °
Lower Time18.0 s
Capacity - Heaped19.00 yd³
Capacity - Struck14.79 yd³
