Volvo

A35D

Off-Highway Truck

Max Speed
34.8 mph
Gross Power
393.0 hp
Net Power
388.0 hp
All off-highway trucks

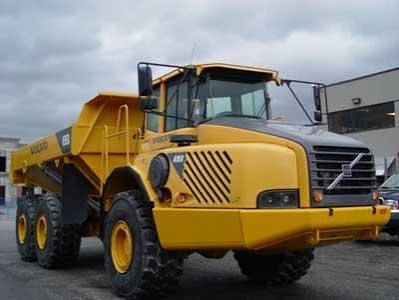

Volvo A35D Off-Highway Truck
1 / 5
Image 1 of 5
Image: interstateeq.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity126.9 gal
Tire Size26.5 R 25*
Engine Oil Capacity13.3 gal
Cooling System Fluid Capacity31.0 gal
Hydraulic System Fluid Capacity66.1 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A
Transmission Fluid Capacity12.9 gal

Engine

Engine specifications
Engine ModelD12C ABE2*
Displacement732 in³
Gross Power393.0 hp
Net Power388.0 hp
AspirationTurbocharged
Max Torque1,412 lb-ft

Weights

Weights specifications
Total Empty62,391 lb
Front Axle - empty33,775 lb
Total Loaded134,041 lb
Rear Axle - empty28,616 lb
Front Axle - loaded39,176 lb
Rear Axle - loaded94,865 lb

Dimensions

Dimensions specifications
Ground Clearance23 in
Wheelbase178 in
Overall Length441 in
Overall Width122 in
Overall Height145 in
Dump Height285 in
Dump Ground Clearance37 in

Transmission

Transmission specifications
Max Speed34.8 mph
Transmission TypeFully Automatic
Number of Forward Gears6
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload71,650 lb
Dump Angle70 °
Lower Time10.0 s
Capacity - Heaped26.20 yd³
Capacity - Struck19.89 yd³
