Volvo

A40E

Off-Highway Truck

Operating Weight
66,580 lb
Max Speed
35.4 mph
Gross Power
469.0 hp
Net Power
464.0 hp
All off-highway trucks

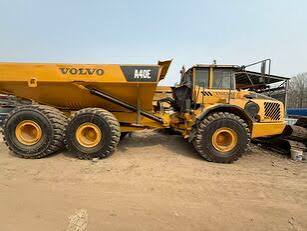

Volvo A40E Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity144.0 gal
Tire Size295R25
Engine Oil Capacity13.3 gal
Cooling System Fluid Capacity26.4 gal
Hydraulic System Fluid Capacity69.2 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Transmission Fluid Capacity10.0 gal

Engine

Engine specifications
Engine ModelD16E AAE3
Displacement976 in³
Power Measured @1,800 rpm
Gross Power469.0 hp
Net Power464.0 hp
Number of Cylinders6
AspirationTurbocharged and Intercooled
Torque Measured @1,200 rpm
Max Torque1,862 lb-ft
MakeVolvo

Weights

Weights specifications
Operating Weight66,580 lb
Total Empty66,580 lb
Front Axle - empty34,643 lb
Total Loaded152,560 lb
Rear Axle - empty31,967 lb
Front Axle - loaded43,321 lb
Rear Axle - loaded109,239 lb

Dimensions

Dimensions specifications
Ground Clearance32 in
Wheelbase179 in
Overall Length444 in
Overall Width135 in
Overall Height149 in
Dump Height285 in
Dump Ground Clearance33 in

Transmission

Transmission specifications
Max Speed35.4 mph
Transmission TypePT 2509
Number of Forward Gears9
Number of Reverse Gears3

Drive System

Drive System specifications
Drive Config6X6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload85,980 lb
Dump Angle72 °
Raise Time12.0 s
Lower Time10.0 s
Capacity - Heaped31.40 yd³
Capacity - Struck24.11 yd³
