Volvo

BL70

Backhoe Loader

Bucket Capacity
1.29 yd³
Max Speed
22.7 mph
Net Power
90.0 hp
All backhoe loaders

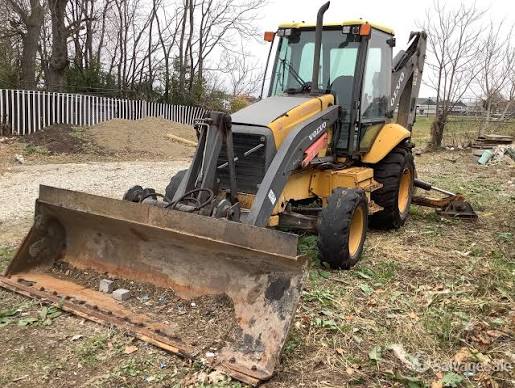

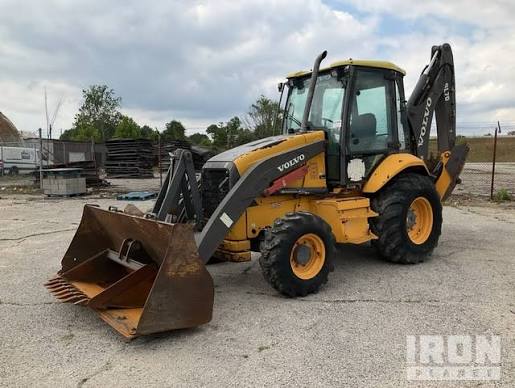

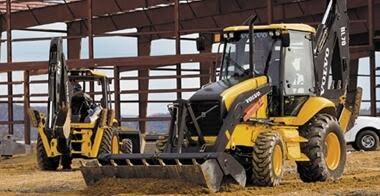

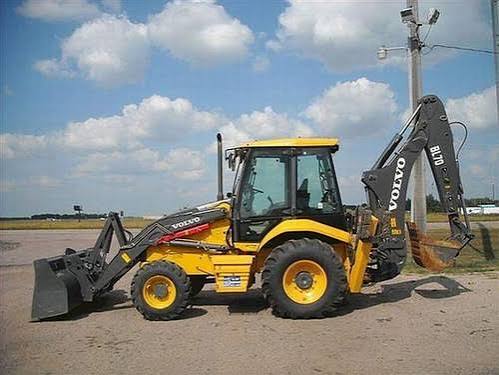

Volvo BL70 Backhoe Loader
1 / 5
Image 1 of 5
Image: infra.tractorjunction.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd18,973 lb
Fuel Capacity31.7 gal
Hydraulic System Fluid Capacity35.7 gal
Cooling System Fluid Capacity5.0 gal
Tire Size Front - 2wd / 4wd12.5/80-18
Operating Voltage12 V
Oil System Fluid Capacity3.7 gal
Alternator Supplied Amperage95 A
Turning Radius198 in
Rear Axle Fluid Capacity3.7 gal
Front Axle Fluid Capacity1.7 gal

Engine

Engine specifications
Engine ModelD4D
Displacement244 in³
Power Measured @2,200 rpm
Net Power90.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,500 rpm
Net Max Torque287 lb-ft
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.0 gal/min
Relief Valve Pressure3,625 psi
Pump TypeAxial-piston pump

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase86 in
Transport Width94 in
Transport Length289 in
Height to Top of Suspended Cab114 in

Transmission

Transmission specifications
Max Speed22.7 mph
Max Speed - Reverse22.7 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepowershuttle with full synchronized gear

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size19.5Lx24

Backhoe

Backhoe specifications
Dig Depth174 in
Reach From Swivel229 in
Dig Depth - Extended216 in
Load Height - Extended175 in
Reach From Swivel - Extended268 in
Reach at Load Height - Extended145 in

Loader

Loader specifications
Bucket Capacity1.29 yd³
Lift Capacity6,953 lb
Clearance at Max Dump Height106 in
Bucket Breakout Force12,445 lb
Bucket Width93 in
Reach at Max Dump Height33 in
Dig Depth8 in
