Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

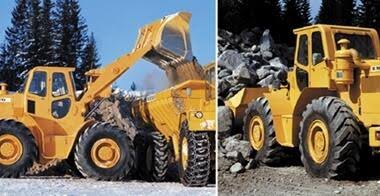

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 30,424 lb |
|---|---|
| Tire Size | 18X25/16SGEM |
| Static Tipping Weight | 18,298 lb |
| Turning Radius | 300 in |
Engine
| Engine Model | D 100 B |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 200.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 7.0 gal/min |
|---|---|
| Relief Valve Setting | 2 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 102 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 254 in |
| Hinge Pin - Max Height | 152 in |
Transmission
| Max Speed - Forward | 18.7 mph |
|---|---|
| Max Speed - Reverse | 18.7 mph |
| Transmission Type | planetary |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
