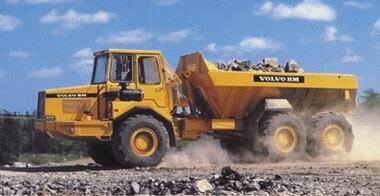

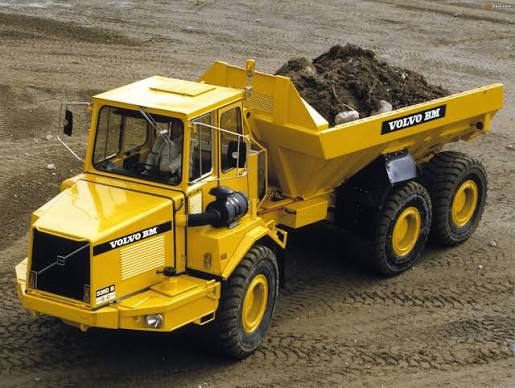

VolvoVolvo
A35E
Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Fuel Capacity | 74.0 gal |
|---|---|
| Tire Size | front 23.5 R 25* rear 29.5R25** |
| Engine Oil Capacity | 4.9 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | TD 70 G |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 213.0 hp |
| Net Power | 190.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 467 lb-ft |
Weights
| Total Empty | 34,613 lb |
|---|---|
| Front Axle - empty | 18,739 lb |
| Total Loaded | 84,217 lb |
| Front Axle - loaded | 24,692 lb |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Wheelbase | 166 in |
| Overall Length | 374 in |
| Overall Width | 98 in |
| Overall Height | 125 in |
| Dump Height | 239 in |
| Dump Ground Clearance | 24 in |
Transmission
| Max Speed | 28.6 mph |
|---|---|
| Transmission Type | Single-Stage with free-wheeling stator and automatic lock-up conversion ratio |
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 1 |
Dump
| Rated Payload | 49,604 lb |
|---|---|
| Dump Angle | 63 ° |
| Raise Time | 12.0 s |
| Lower Time | 16.0 s |
| Capacity - Heaped | 17.09 yd³ |
| Capacity - Struck | 13.00 yd³ |
