Volvo

BM 860

Off-Highway Truck

Max Speed
11.6 mph
Net Power
150.0 hp
All off-highway trucks

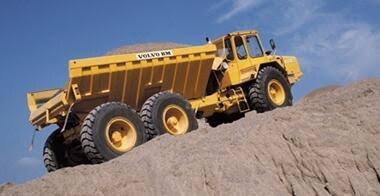

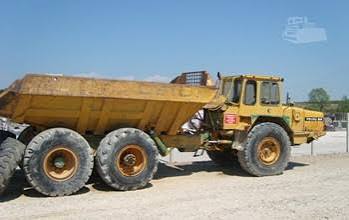

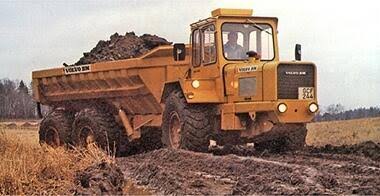

Volvo BM 860 Off-Highway Truck
1 / 5
Image 1 of 5
Image: transourcetrucks.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity59.5 gal
Tire Sizefront18.00 x 25/16 EM - rear 16.00x24/16EM
Engine Oil Capacity4.5 gal
Cooling System Fluid Capacity6.1 gal
Hydraulic System Fluid Capacity35.7 gal
Operating Voltage12 V
Transmission Fluid Capacity5.9 gal

Engine

Engine specifications
Engine ModelTD 50 B
Power Measured @2,500 rpm
Net Power150.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,900 rpm
Max Torque330 lb-ft

Weights

Weights specifications
Total Empty27,558 lb
Front Axle - empty15,432 lb
Total Loaded64,375 lb
Front Axle - loaded22,046 lb

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase159 in
Overall Length362 in
Overall Width98 in
Overall Height110 in
Dump Height230 in
Dump Ground Clearance61 in

Transmission

Transmission specifications
Max Speed11.6 mph
Transmission Typepowershift
Number of Forward Gears4
Number of Reverse Gears4

Dump

Dump specifications
Dump Angle70 °
Raise Time18.0 s
Capacity - Heaped14.40 yd³
Capacity - Struck10.90 yd³
