Volvo

BM A20 6x6

Off-Highway Truck

Max Speed
21.2 mph
Gross Power
201.0 hp
Net Power
186.0 hp
All off-highway trucks

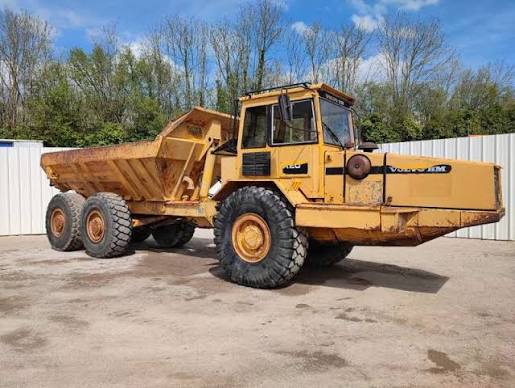

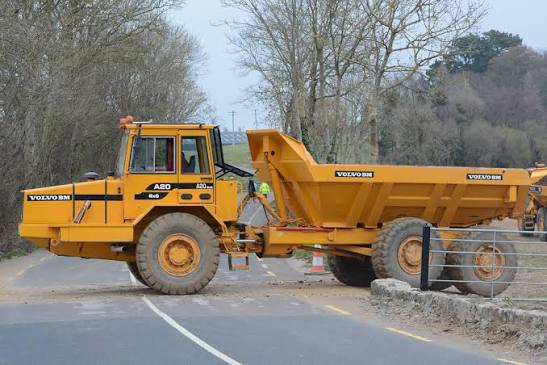

Volvo BM A20 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity78.0 gal
Tire SizeFront - 18.00 R 25* / Rear 20.5 R 25*
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity6.4 gal
Hydraulic System Fluid Capacity45.0 gal
Operating Voltage24 V
Transmission Fluid Capacity5.6 gal

Engine

Engine specifications
Engine ModelTD71G
Displacement411 in³
Power Measured @2,200 rpm
Gross Power201.0 hp
Net Power186.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,700 rpm
Max Torque472 lb-ft

Weights

Weights specifications
Total Empty34,070 lb
Front Axle - empty17,200 lb
Total Loaded74,860 lb
Rear Axle - empty16,870 lb
Front Axle - loaded23,150 lb
Rear Axle - loaded51,710 lb

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase170 in
Overall Length396 in
Overall Width98 in
Overall Height122 in
Dump Height251 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed21.2 mph
Transmission TypeAutomatic Power-Shift
Number of Forward Gears4
Number of Reverse Gears3

Dump

Dump specifications
Rated Payload40,786 lb
Dump Angle63 °
Raise Time16.0 s
Lower Time16.0 s
Capacity - Heaped14.40 yd³
Capacity - Struck11.41 yd³
