Volvo

BM A20C 6x6

Off-Highway Truck

Max Speed
29.3 mph
Gross Power
232.0 hp
Net Power
228.0 hp
All off-highway trucks

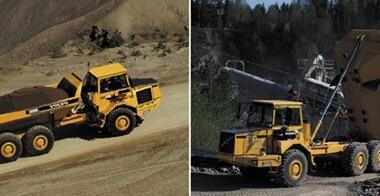

Volvo BM A20C 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Tire Size20.5 R 25
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity9.8 gal
Hydraulic System Fluid Capacity42.3 gal
Operating Voltage24 V
Transmission Fluid Capacity4.3 gal

Engine

Engine specifications
Engine ModelTD 71 KF
Displacement411 in³
Power Measured @2,400 rpm
Gross Power232.0 hp
Net Power228.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,800 rpm
Max Torque564 lb-ft

Weights

Weights specifications
Total Empty36,155 lb
Front Axle - empty19,180 lb
Total Loaded80,247 lb
Rear Axle - empty16,975 lb
Front Axle - loaded24,030 lb
Rear Axle - loaded56,217 lb

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase166 in
Overall Length374 in
Overall Width98 in
Overall Height127 in
Dump Height239 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed29.3 mph
Transmission TypeFully automatic planetary tansmission
Number of Forward Gears5
Number of Reverse Gears1

Dump

Dump specifications
Rated Payload44,092 lb
Dump Angle63 °
Raise Time15.0 s
Lower Time15.0 s
Capacity - Heaped15.70 yd³
Capacity - Struck12.29 yd³
