Volvo

BM A25 6x6

Off-Highway Truck

Max Speed
31.7 mph
Gross Power
244.0 hp
Net Power
240.0 hp
All off-highway trucks

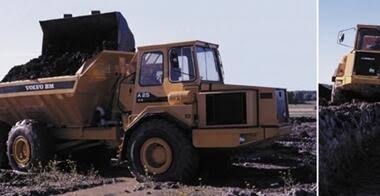

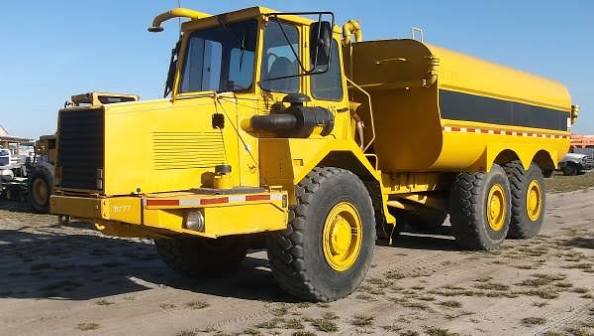

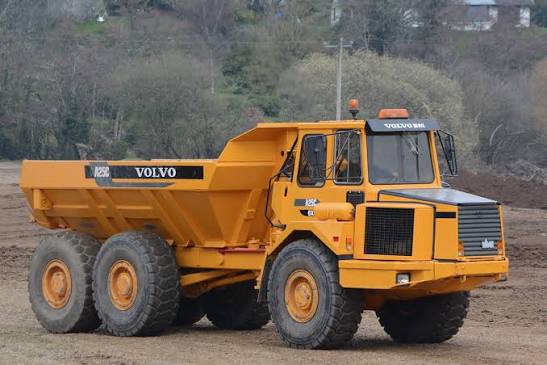

Volvo BM A25 6x6 Off-Highway Truck
1 / 5
Image 1 of 5
Image: britanniaexport.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Tire Size20.5 R 25
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.0 gal
Hydraulic System Fluid Capacity42.3 gal
Operating Voltage24 V
Transmission Fluid Capacity4.3 gal

Engine

Engine specifications
Engine ModelTD 71 K
Displacement411 in³
Power Measured @2,400 rpm
Gross Power244.0 hp
Net Power240.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,600 rpm
Max Torque590 lb-ft

Weights

Weights specifications
Total Empty37,260 lb
Front Axle - empty19,180 lb
Total Loaded86,880 lb
Rear Axle - empty18,080 lb
Front Axle - loaded24,700 lb
Rear Axle - loaded62,180 lb

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase165 in
Overall Length374 in
Overall Width98 in
Overall Height125 in
Dump Height239 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed31.7 mph
Transmission TypePlanetary Transmission
Number of Forward Gears10
Number of Reverse Gears2

Dump

Dump specifications
Rated Payload49,604 lb
Dump Angle63 °
Raise Time12.0 s
Lower Time16.0 s
Capacity - Heaped15.70 yd³
Capacity - Struck12.29 yd³
